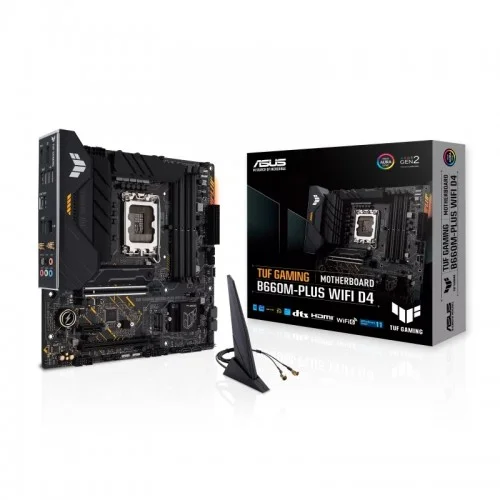

Unlock Unmatched Gaming Performance with the ASUS TUF GAMING B660M-PLUS WIFI D4
This motherboard is designed for serious gamers and PC enthusiasts who crave unparalleled performance, reliability, and customization options. The ASUS TUF GAMING B660M-PLUS WIFI D4 delivers a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking, pristine audio, and onboard RGB lighting.
Key Features and Benefits
Technical Specifications at a Glance:
- Supports 12th Gen Intel Core, Pentium Gold, and Celeron Processors
- Intel B660 Chipset for enhanced performance and power delivery
- 4 x DDR4 memory slots with support for up to 128GB of RAM
- 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x1 slot, and 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 2 x M.2 slots, 4 x SATA 6Gb/s ports, and 1 x Realtek 2.5Gb Ethernet
- Supports Intel Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth v5.2
ASUS TUF GAMING Technologies
The ASUS TUF GAMING B660M-PLUS WIFI D4 features a range of proprietary technologies designed to enhance performance, cooling, and reliability.
Key Technologies:
- 10+1 DrMOS Power Stages for efficient power delivery and reduced heat generation
- Stack Cool 3+ and M.2 heatsinks for improved cooling and reduced temperatures
- Fan Xpert 4 utility for customizable fan control and temperature monitoring
- Two-way AI Noise-Cancelation for crystal-clear communication in games or video conferences
- ASUS TUF PROTECTION features, including DIGI+ VRM, Enhanced DRAM Overcurrent Protection, and more
Part ID: #CAN-01897
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard
|
In Stock | 24,500 | 4 hours ago | |
|
Nexus Computer
ASUS TUF GAMING B660M-PLUS WIFI D4 mATX Motherboard
|
In Stock | 25,000 | 3 hours ago | |
|
Sell Tech
ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
PC House
ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen MATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B660 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
microATX 24.4cm x 24.4cm
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB:Total 8 ports Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB:Total 7 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication module
Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Audio
5 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
Warranty Information
Manufacturing Warranty
3 years
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
