Product Description

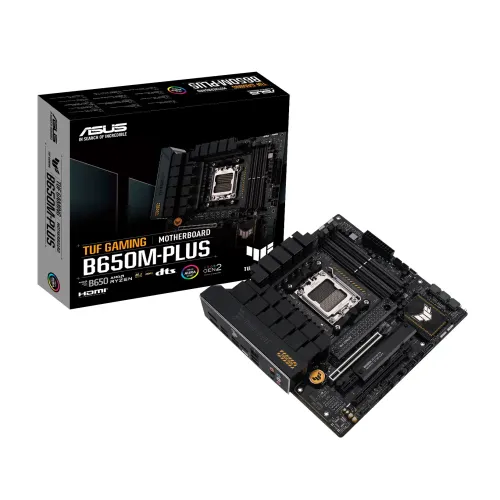

Engineered by ASUS, this motherboard is designed for **AM5** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **32,000 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01195
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset
AMD B650
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0/3.0 x1 slot
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet TUF LANGuard
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio
5 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trialversion) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
TUF GAMING B650M-PLUS
Supported CPU
Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 128GB, 6400+(OC)
Graphics Output
1x HDMI, 1x Display Port
Features
Realtek 2.5Gb Ethernet
Part ID: #CAN-01195
Last Updated: 2 days ago
The Asus TUF GAMING B650M-PLUS supports AMD Ryzen 8000 & 7000-series processors for socket AM5. It has been expertly engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system. It comes with robust 12+2 power stages (rated 60A) with enlarged VRM heatsinks. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity The motherboard is equipped with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. It has a 6-layer PCB Design. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. It features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Asus TUF GAMING B650M-PLUS offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0. It also offers Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C. Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers. The Asus PRIME B650M-A WIFI Motherboard comes with 3 years of warranty.
