Product Description

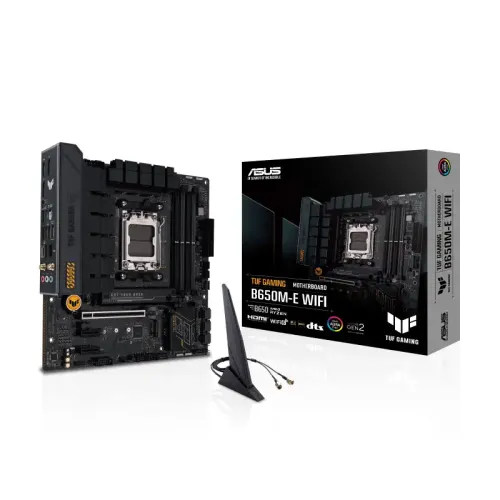

ASUS TUF GAMING B650M-E WIFI AMD AM5 Micro-ATX Motherboard
Unleash Your Gaming Potential
Designed for serious gamers and content creators, the ASUS TUF GAMING B650M-E WIFI motherboard delivers exceptional performance, reliability, and features to take your PC to the next level. With its robust power solution, extensive cooling system, and advanced technologies, this motherboard is the perfect choice for those who demand the best.
Key Features at a Glance
- Support for AMD Ryzen 8000 & 7000 Series Processors - Unlock the full potential of your CPU with this motherboard's compatibility with the latest AMD Ryzen processors.
- DDR5 Memory Support up to 192GB - Enjoy lightning-fast memory speeds and capacities with this motherboard's support for DDR5 memory.
- Wi-Fi 6 and 2.5Gb Ethernet - Stay connected with the fastest networking speeds and most reliable connections.
- PCIe 5.0 for M.2 Storage - Experience blazing-fast storage speeds with this motherboard's support for PCIe 5.0.
- ASUS Q-Design and Aura Sync - Customize your gaming experience with ASUS Q-Design and Aura Sync, allowing you to personalize your RGB lighting and fan controls.
Advanced Technologies and Features
ASUS TUF PROTECTION - This motherboard features ASUS TUF PROTECTION, which includes DIGI+ VRM, ESD Guards, TUF LANGuard, and Overvoltage Protection, ensuring rock-solid performance and reliability.
ASUS Q-Design - ASUS Q-Design features M.2 Q-Latch, Q-DIMM, and Q-LED, making it easy to install and troubleshoot your system.
ASUS Thermal Solution - The motherboard features an enlarged VRM heatsink, optimized M.2 heatsink design, and comprehensive fan controls, ensuring efficient cooling and optimal performance.
Part ID: #CAN-01356
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
Asus TUF GAMING B650M-E WIFI AMD AM5 Micro-ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
PC House
Asus TUF GAMING B650M-E WIFI AMD AM5 Micro-ATX Motherboard
|
In Stock | 31,290 | 4 hours ago | |
|
Computer Village
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard
|
In Stock | 31,700 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset
AMD B650
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory
192GB
Graphics
Graphics
2 x DisplayPort 1 x HDMITM port
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2x DisplayPort
USB (s)
Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
TUF GAMING B650M-E WIFI
Supported CPU
Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 192GB, 7600+(OC)
Graphics Output
1x HDMI, 2x Display Port
Features
Wi-Fi 6, Realtek 2.5Gb Ethernet
Part ID: #CAN-01356
Last Updated: 1 month ago
