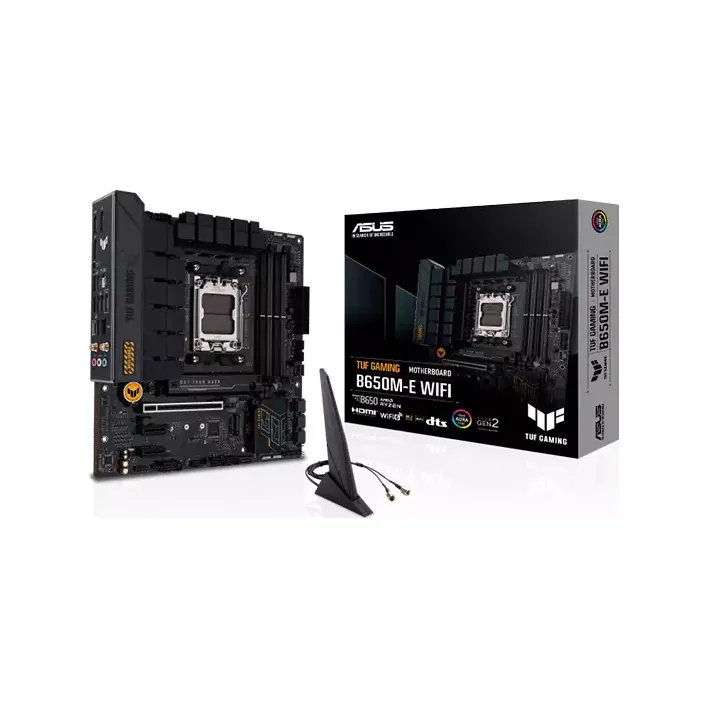

ASUS TUF GAMING B650M-E WIFI AMD AM5 DDR5 MICRO-ATX MOTHERBOARD

Status
In Stock
2 stores
Lowest 27,500 BDT
Price Range 27,500 to 29,000 BDT Save 5%
ASUS TUF GAMING B650M-E WIFI AMD AM5 DDR5 MICRO-ATX MOTHERBOARD

Product Description

Unleash Unbridled Performance with the ASUS TUF Gaming B650M-E Wi-Fi DDR5 Motherboard

Designed for PC enthusiasts and gamers, this feature-packed Micro-ATX motherboard offers a perfect blend of performance, connectivity, and durability. With its support for the latest AMD Ryzen 7000 Series Desktop Processors and DDR5 memory, you can experience top-tier gaming and multitasking performance like never before.

Key Features and Benefits

  • Supports AMD Ryzen 7000 Series Desktop Processors with AMD Socket AM5 for cutting-edge CPU performance
  • Four DIMM slots for up to 192GB of DDR5 RAM, with speeds of up to 7600+(OC) MHz for faster data access and improved multitasking
  • Two DisplayPort and one HDMI port for resolutions of up to 8K@60Hz and 4K@60Hz, respectively, for seamless gaming and content creation
  • One PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots for customizable expansion and graphics card support
  • Realtek 2.5Gb Ethernet port for fast and reliable wired networking, as well as Wi-Fi 6 and Bluetooth v5.2 for wireless connectivity

TUF Gaming Technology

The ASUS TUF Gaming B650M-E Wi-Fi DDR5 Motherboard incorporates a range of proprietary technologies to deliver exceptional performance, durability, and customization options, including:

Aura Sync RGB Lighting

Customize your system's aesthetics with Aura Sync RGB lighting support, allowing you to synchronize lighting effects with compatible components for a visually stunning setup.

ASUS TUF PROTECTION

Engineered for durability, it includes ASUS TUF PROTECTION features such as DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, and SafeSlot Core+ to safeguard your components.

ASUS EZ DIY

Features like BIOS FlashBack button, pre-mounted I/O shield, and other convenient tools make building and customizing your PC easier.

Part ID: #CAN-01538 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology ASUS TUF Gaming B650M-E Wi-Fi DDR5 Motherboard
In Stock 27,500 4 hours ago
TechLand BD ASUS TUF GAMING B650M-E WIFI AMD AM5 DDR5 MICRO-ATX MOTHERBOARD
In Stock 29,000 4 hours ago

Historical Pricing Trend

Product Specifications

General Specifications

LAN 1 x Realtek 2.5Gb Ethernet TUF LANGuard
USB Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
HDMI 1 x HDMITM port
WiFi Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Slots AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots
Memory 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II
Chipset AMD B650
Graphics 2 x DisplayPort** 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Warranty 03 Years Warranty
Bluetooth Bluetooth® v5.2
Dimension 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Multi-GPU Yes
Form Factor Micro-ATX
Supported CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Other Features Manageability: WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide Operating System: Windows® 11, Windows® 10 64-bit
Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
External I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function
Part ID: #CAN-01538 Last Updated: 1 month ago
