Product Description

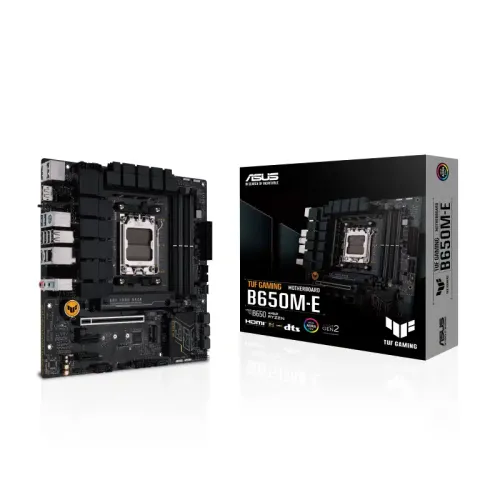

Unlock Your Gaming Potential with the ASUS TUF GAMING B650M-E
Designed for serious gamers and PC enthusiasts, the ASUS TUF GAMING B650M-E motherboard is built to deliver exceptional performance, reliability, and features that cater to your needs. With its robust power delivery, high-speed connectivity, and advanced cooling system, this motherboard is the perfect companion for your AMD Ryzen 8000 & 7000-series processor-based gaming rig.
Key Features and Benefits
- Supports the latest AMD Ryzen 8000 & 7000-series processors
- 4x DDR5 memory slots with up to 192GB of memory capacity and 7600+(OC) speeds
- 1x PCIe 5.0 x16 slot and 2x PCIe 4.0 x1 slots for graphics and expansion cards
- Realtek 2.5Gb Ethernet and high-quality audio with DTS Audio Processing
- Comprehensive fan controls, M.2 Q-Latch, and Q-LED troubleshooting lights
Advanced Technologies and Features
Asus TUF PROTECTION and ASUS Q-Design
The ASUS TUF GAMING B650M-E motherboard features a range of advanced technologies and features, including DIGI+ VRM, ESD Guards, TUF LANGuard, and Overvoltage Protection. Additionally, it boasts an enlarged VRM heatsink, optimized M.2 heatsink design, and comprehensive fan controls. The motherboard also offers intuitive controls and monitoring through the UEFI BIOS, making it easy to fine-tune and optimize your system for optimal performance.
Customization and Personalization
Aura Sync and RGB Lighting
The ASUS TUF GAMING B650M-E motherboard allows you to create a personalized gaming atmosphere with its Aura Sync RGB lighting. With a range of customizable options, you can synchronize your lighting with other Aura-enabled components, creating a stunning visual effect that immerses you in the gaming experience.
Part ID: #CAN-01079
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard
|
In Stock | 25,699 | 4 hours ago | |
|
Star Tech
Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard
|
In Stock | 27,500 | 1 week ago | |
|
Sell Tech
Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard
|
In Stock | 27,500 | 4 hours ago | |
|
Skyland BD
Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard
|
In Stock | 27,500 | 3 hours ago | |
|
PC House
Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard
|
In Stock | 28,190 | 4 hours ago | |
|
Global Brand PLC
ASUS TUF GAMING B650M-E mATX AMD Gaming Motherboard
|
In Stock | 28,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset
AMD B650
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory
192GB
Graphics
Graphics
2 x DisplayPort 1 x HDMITM port
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2x DisplayPort
USB (s)
Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet TUF LANGuard
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
TUF GAMING B650M-E
Supported CPU
Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 192GB, 7600+(OC)
Graphics Output
1x HDMI, 2x Display Port
Features
Realtek 2.5Gb Ethernet
