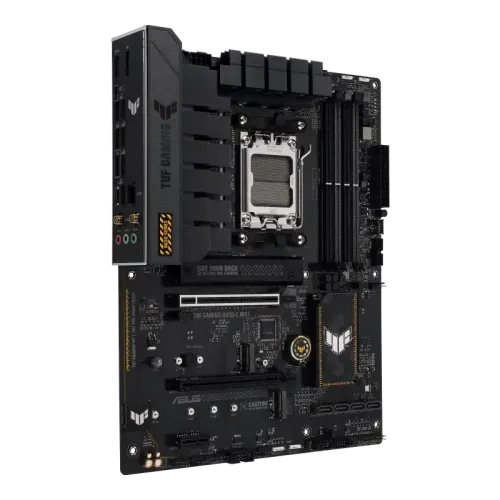

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard

Status
In Stock
5 stores
Lowest 27,000 BDT
Price Range Single price listing
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard

Product Description

Unlock Unmatched Performance with the ASUS TUF GAMING B650-E WIFI Motherboard

Designed for gamers and power users, the ASUS TUF GAMING B650-E WIFI motherboard is engineered to deliver exceptional performance, reliability, and durability. Built for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard offers the power and stability required for demanding applications.

Key Features

  • Supports AMD Ryzen 9000, 8000, and 7000 Series processors for Socket AM5
  • Up to 192GB DDR5 memory with speeds reaching over 8000MHz with overclocking (OC)
  • 1x HDMI and 1x DisplayPort for versatile graphic output
  • 2.5Gb Ethernet and Wi-Fi 6E for high-speed wired and wireless connectivity
  • Comprehensive cooling system and rigorous endurance testing for reliability

Advanced Technologies

The ASUS TUF GAMING B650-E WIFI motherboard features a range of advanced technologies designed to enhance performance and stability.

Key Proprietary Technologies

•** DIGI+ VRM**: Digital power design with DrMOS for efficient power delivery

•** Enhanced DRAM Overcurrent Protection**: Advanced protection for DDR5 memory

•** TUF LANGuard**: Enhanced LAN protection and networking capabilities

•** Aura Sync**: Advanced RGB lighting and synchronization capabilities

•** ASUS Q-Design**: Innovative Q-DIMM, Q-LED, and Q-Slot designs for enhanced usability and aesthetics

Experience the Power of the ASUS TUF GAMING B650-E WIFI Motherboard

Built with military-grade components and designed for durability and reliability, this motherboard is perfect for gamers and power users who demand the best performance and stability from their system.

Part ID: #CAN-01080 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
In Stock 26,900 4 hours ago
Buy Now
Star Tech Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
In Stock 27,000 1 week ago
Buy Now
Sell Tech Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
In Stock 27,000 4 hours ago
Buy Now
PCB Store ASUS TUF GAMING B650-E WIFI AM5 ATX Motherboard
In Stock 27,500 4 hours ago
Buy Now
Skyland BD Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
In Stock 27,500 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) 1 x PCIe 4.0/3.0 x1 slots
M.2 Socket Supports 3 x M.2 slots

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory 8000+ OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II
Maximum Memory 192GB

Graphics

Graphics * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution.

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports) 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication module Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 5 x Audio jacks
Internal I/O Ports Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button

Others

Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s)
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model TUF GAMING B650-E WIFI
Supported CPU Ryzen 9000, 8000 & 7000 Series Processors for Socket AM5
Supported RAM 4x DDR5, up to 192GB, 8000+(OC)
Graphics Output 1x HDMI, 1x DisplayPort
Features 1 x 2.5Gb Ethernet, Wi-Fi 6E
Part ID: #CAN-01080 Last Updated: 1 month ago
