Product Description

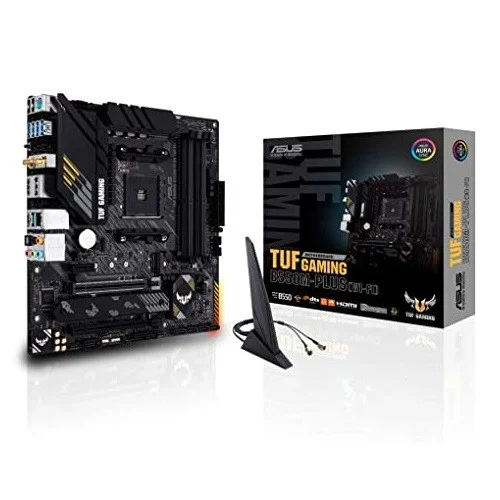

Unleash Your Gaming Potential with the ASUS TUF Gaming B550M-Plus Wi-Fi Micro ATX AM4 Motherboard
This motherboard is designed for serious gamers and content creators who demand top-notch performance and reliability. With its robust features and ASUS TUF Gaming Alliance, you can build a high-core-count battle rig that delivers unwavering gaming stability and rock-solid performance.
Key Features and Benefits
- Support for AMD Ryzen Processors: Compatible with 3rd Gen AMD Ryzen and Ryzen with Radeon Graphics Processors, delivering exceptional processing power and graphics capabilities.
- PCIe 4.0 and 3.0 Support: Enjoy faster data transfer rates with PCIe 4.0 x16 and 3.0 x16/x4 modes, and expand your system with multiple graphics cards.
- Realtek ALC S1200A Audio: Experience premium 7.1 Surround Sound audio with high-definition audio CODEC, supporting up to 24-Bit/192kHz playback.
- Dual M.2 and SATA 6Gb/s Ports: Store your data with two M.2 slots and four SATA 6Gb/s ports, supporting RAID 0, 1, and 10 configurations.
- Realtek 2.5Gb Ethernet and Wi-Fi: Stay connected with reliable and fast networking options, featuring Realtek RTL8125B 2.5Gb Ethernet and Wi-Fi connectivity.
ASUS TUF Gaming Alliance and Exclusive Technologies
As part of the ASUS TUF Gaming Alliance, this motherboard is designed to work seamlessly with other TUF Gaming components, ensuring optimal compatibility and aesthetics. Additionally, this board features several exclusive technologies, including:
ASUS DIGI+ VRM: Digital power design with Dr. MOS that delivers precise voltage regulation and reduced power loss.
ASUS Enhanced DRAM Overcurrent Protection: Advanced protection against overcurrent damage to your memory modules.
ASUS TUF LANGuard: Enhanced LAN protection with surge and overvoltage protection to safeguard your network and data.
ASUS SafeSlot: Fortified PCIe slot with metal reinforcement and secure mounting to prevent damage from heavy graphics cards.
ASUS Stainless-Steel Back I/O: Durable and corrosion-resistant back panel with a sleek and premium finish.
Part ID: #CAN-01894
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus TUF Gaming B550M-Plus Wi-Fi Micro ATX AM4 Motherboard
|
In Stock | 18,500 | 4 hours ago | |
|
Computer Village
Asus TUF Gaming B550M-Plus Wi-Fi Micro ATX AM4 Motherboard
|
In Stock | 19,300 | 4 hours ago | |
|
Nexus Computer
Asus TUF GAMING B550M-PLUS Wi-Fi 6 Motherboard
|
Check Stock | Call for Price | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
Chipset
AMD B550
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Expansion Slots
PCI
3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
M.2 Socket
3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
Memory
Type
Dual Channel Memory Architecture
Slots
4 x DIMM
Supported Memory
3rd Gen AMD Ryzen Processors: 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors: 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Mamory
128GB
Graphics
Graphics
1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI
1 x HDMI 2.1(4K@60HZ)
Display Port (s)
1 x DisplayPort 1.2
USB (s)
Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)
Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard
Supported Storage
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports
1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Warranty Information
Manufacturing Warranty
03 years warranty
Others
Special Features
ASUS Special Features: ASUS TUF PROTECTION- - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
Part ID: #CAN-01894
Last Updated: 1 month ago
