Product Description

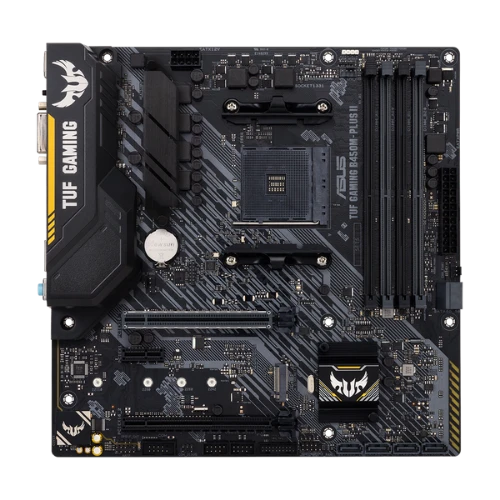

Engineered by ASUS, this motherboard is designed for **AM4** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **13,490 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01786
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek RTL8111H 1Gb Ethernet with TUF LANGuard
RGB
Aura Sync RGB header
TPM
1 x SPI TPM header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
HDMI
1 port
SATA
6 connectors
Type
DDR4
Audio
1 x Front panel audio connector
DVI-D
1 port
Model
ASUS TUF GAMING B450M-PLUS II
Modes
PCIe 3.0 x4 and SATA (depending on CPU)
Power
24-pin EATX, 8-pin EATX 12V
Slots
4 x DIMM
EZ DIY
BIOS FlashBack button, BIOS FlashBack LED
Socket
AMD AM4
CPU Fan
1 connector
Chipset
AMD B450
Speaker
1 connector
Thermal
Aluminum heatsink design
USB 2.0
2 connectors (supports 4 ports)
COM Port
1 header
EZ Flash
Version 3
M.2 Slot
1 x Socket 3, Type 2242/2260/2280/22110
Q-Design
Q-DIMM, Q-Slot
Rear USB
6 ports (1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 2.0 Type-A)
Warranty
03 Years
Front USB
6 ports (2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A)
UEFI BIOS
EZ Mode
Clear CMOS
1 jumper
M.2 Socket
1 connector
Protection
DIGI+ VRM, DRAM Overcurrent Protection, ESD Guards, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O
RGB Header
1 x Aura RGB Strip Header
S/PDIF Out
1 header
SATA Ports
6 x SATA 6Gb/s
Chassis Fan
2 connectors
ECC Support
Varies by CPU
Form Factor
Micro-ATX, 24.4 cm x 24.4 cm
PCIe 2.0 x1
1 slot
Architecture
Dual Channel
Max Capacity
128GB
PCIe 2.0 x16
x4 mode
System Panel
1 connector
Compatibility
Ryzen 5000/5000 G-Series/4000 G-Series/3rd/2nd/1st Gen Ryzen
USB 3.2 Gen 1
1 connector (supports 2 ports)
CrashFree BIOS
Version 3
Graphics Support
Ryzen with Radeon Vega Graphics, Athlon with Radeon Vega Graphics
PCIe 3.0/2.0 x16
x16/x8/x4 modes (depending on CPU)
Supported Speeds
4400(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3533(O.C.), 3466(O.C.), 3400(O.C.), 3200, 3000, 2800, 2666, 2400, 2133 MHz
Integrated Graphics
Supported with Ryzen Vega and Athlon Vega CPUs
Part ID: #CAN-01786
Last Updated: 2 days ago
