Product Description
Engineered by ASUS, this motherboard is designed for **AM5** socket processors and featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **18,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-09500
Last Updated: 1 week ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Chipset
AMD A620 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
Micro-ATX
Memory
Maximum Memory
4 X DIMM Slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC And Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles For Overclocking (EXPO™) OptiMem II
Slots
AMD Ryzen™ 7000 Series Desktop Processors* 1 X PCIe 4.0 X16 Slot AMD A620 Chipset 2 X PCIe 3.0 X1 Slots
Supported Memory
Supported Memory Types, Data Rate (Speed), And Number Of DRAM Modules Vary Depending On The CPU And Memory Configuration, For More Information Please Refer To CPU/Memory Support List Under The Support Tab Of Product Information Site Or Visit Https://Www.Asus.Com/Support/.
Graphics
Graphics
2 X DisplayPort 1 X HDMI™ Port * Graphics Specifications May Vary Between CPU Types. Please Refer To AMD CPU Specifications. ** Support Max. 8K@60Hz As Specified In DisplayPort 1.4. *** Supports 4K@60Hz As Specified In HDMI 2.1.
Ports, Connectors & Slots
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking Supports Up To 24-Bit/192 KHz Playback Audio Features Audio Shielding Premium Audio Capacitors Dedicated Audio PCB Layers * A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.
Display Port (s)
2 X DisplayPort
External I/O Ports
2 X USB 3.2 Gen 1 (5G) Ports (2 X Type-A) 4 X USB 2.0 Ports (4 X Type-A) 1 X Realtek 2.5Gb Ethernet Port 3 X Audio Jacks 1 X BIOS FlashBack™ Button 1 X PS/2 Keyboard/Mouse Combo Port
HDMI/VGA
1 X HDMI™ Port
Internal I/O Ports
Fan And Cooling Related 1 X 4-Pin CPU Fan Header 2 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector Storage Related 2 X M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 1 (5G) Connector (Supports USB Type-C® ) 1 X USB 3.2 Gen 1 (5G) Header Supports 2 Additional USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports Miscellaneous 3 X Addressable Gen 2 Headers 1 X Aura RGB Header 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X S/PDIF Out Header 1 X Speaker Header 1 X 10-1 Pin System Panel Header
Supported Storage
Total Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) AMD A620 Chipset 4 X SATA 6Gb/S Ports
USB (s)
Rear USB (Total 6 Ports) 2 X USB 3.2 Gen 1 (5G) Ports (2 X Type-A) 4 X USB 2.0 Ports (4 X Type-A) Front USB (Total 7 Ports) 1 X USB 3.2 Gen 1 (5G) Connector (Supports USB Type-C®) 1 X USB 3.2 Gen 1 (5G) Header Supports 2 Additional USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports
Physical Specification
Dimensions
9.6 Inch X 9.6 Inch (24.4 Cm X 24.4 Cm)
Warranty
Manufacturing Warranty
3 Year
Other Features
Others
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z Norton 360 For Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Part ID: #CAN-09500
Last Updated: 1 week ago

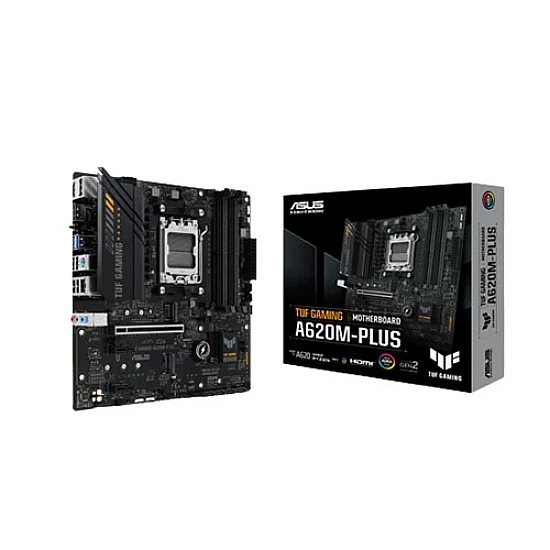

ASUS TUF GAMING A620M PLUS AMD RYZEN MICRO ATX MOTHERBOARD TUF GAMING A620M-PLUS motherboard, designed for high-end gaming enthusiasts. Powered by the latest AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors and AMD A620 Chipset, this motherboard supports up to 128GB of DDR5 memory with a maximum speed of 6400+(OC). The OptiMem II technology ensures stable and reliable performance, even under heavy loads. Equipped with advanced graphics support, this motherboard features 2 x DisplayPort and 1 x HDMI™ port that enable you to enjoy stunning visuals at a resolution of up to 8K@60Hz and 4K@60Hz, respectively. Additional expansion slots include 1 x PCIe 4.0 x16 slot and 2 x PCIe 3.0 x1 slots, and storage options include 2 x M.2 slots and 4 x SATA 6Gb/s ports supporting both PCIe RAID 0/1/10 and SATA RAID 0/1/10. TUF GAMING A620M-PLUS also features Realtek 7.1 Surround Sound High Definition Audio CODEC providing crystal clear audio output through dedicated audio PCB layers, premium audio capacitors, and audio shielding. The back panel I/O ports feature 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 2 x DisplayPort, 1 x HDMI™ port, and 1 x Realtek 2.5Gb Ethernet port. Designed with this motherboard is equipped with DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O. EZ DIY features like BIOS FlashBack™ button, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, and ASUS UEFI BIOS EZ Mode make it easy to customize your system. Additionally, Armoury Crate software provides features like Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, and Two-Way AI Noise Cancellation. This micro-ATX form factor measures 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) and comes with a 3-year replacement warranty.
