Product Description
Power Your Gaming Experience

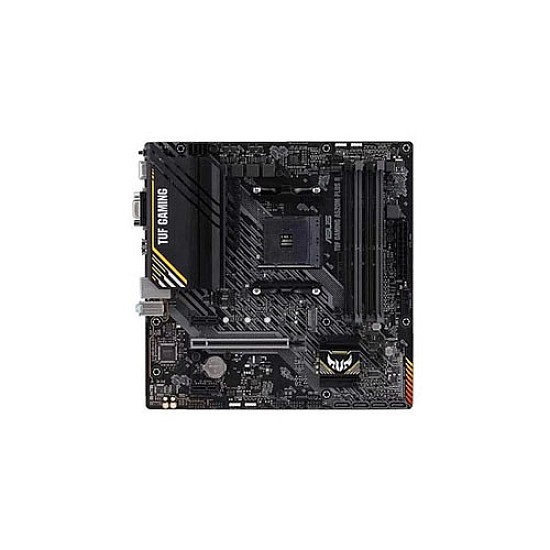

Unlock unparalleled performance and versatility with the ASUS TUF GAMING A520M-PLUS II DDR4 motherboard, designed for gamers, content creators, and PC enthusiasts. This premium motherboard is engineered to deliver exceptional power, speed, and durability, making it the perfect choice for building a high-performance gaming PC.
Key Features and Benefits
- Supports AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors for exceptional processing power
- Features 1 x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 storage devices support for lightning-fast storage
- Includes 4 x DIMM slots with support for up to 128GB of DDR4 memory for seamless multitasking
- Equipped with Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC for immersive audio experiences
- Boasts 7 rear USB ports, including 1 x USB 3.2 Gen 2 port and 4 x USB 3.2 Gen 1 ports for convenient connectivity
Exclusive Technologies and Features
The ASUS TUF GAMING A520M-PLUS II DDR4 motherboard features a range of innovative technologies and features, including:
- Armoury Crate - a software platform that allows you to customize and monitor your system's performance
- Aura Creator - a tool that enables you to create and customize your own lighting effects
- TUF PROTECTION - a suite of technologies that protect your system from overheating, overvoltage, and electrical surges
- AI Charging - a feature that optimizes your system's power delivery for maximum performance and efficiency
Part ID: #CAN-02165
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset
AMD A520
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
M.2 Socket
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
PCI
3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
Memory
Maximum Memory
128GB
Slots
4 x DIMM slots
Supported Memory
3rd Gen AMD Ryzen Processors 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU
Type
Dual Channel Memory Architecture
Graphics
Graphics
Integrated Graphics in the 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Ports, Connectors & Slots
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
D-Sub (s)
1 x D-Sub
DVI-D (s)
1 x DVI-D
HDMI/VGA
1 x HDMI 2.1(4K@60HZ)
Internal I/O Ports
1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
LAN Port (s)
Realtek L8200A 1Gb Ethernet TUF LANGuard
Supported Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
TPM (Trusted Platform Module )
1 x SPI TPM header
USB (s)
Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 5 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 3 x USB 2.0 port(s)(3 x Type-A)
Warranty
Manufacturing Warranty
03 Years Warranty
Other Features
Special Features
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Part ID: #CAN-02165
Last Updated: 1 month ago
