Product Description

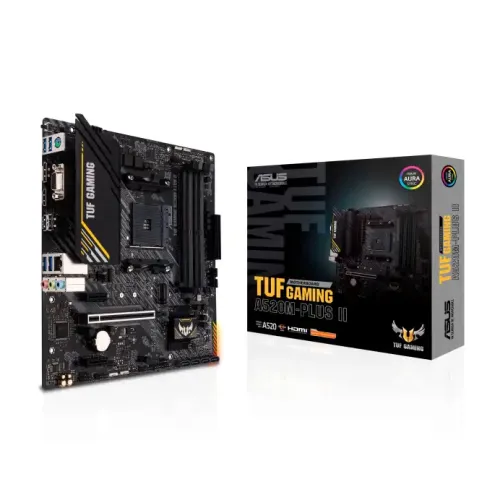

ASUS TUF GAMING A520M-PLUS II AMD AM4 MicroATX Motherboard
Unleash Your Gaming Potential
Designed for the latest AMD Ryzen 5000 Series and 3000 Series desktop processors, the ASUS TUF GAMING A520M-PLUS II Motherboard is the perfect foundation for your next high-performance gaming rig. With its robust power delivery, comprehensive cooling options, and support for faster memory, this motherboard delivers rock-solid performance with unwavering gaming stability.
Key Features at a Glance
- Supported CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- 4 x DIMM, Max. 128GB, DDR4 memory support for faster performance
- 1 x DisplayPort 1.2, 1 x HDMI 2.1, and 1 x D-Sub graphics output for seamless connectivity
- Comprehensive cooling options, including a VRM heatsink design and TUF GAMING Alliance
- Realtek 1Gb Ethernet TUF LANGuard for ultrafast networking and reduced lag
- Onboard RGB headers for customizable lighting and a personalized gaming atmosphere
Proprietary Technologies
The ASUS TUF GAMING A520M-PLUS II Motherboard features a range of proprietary technologies designed to enhance your gaming experience. The TUF GAMING Alliance ecosystem ensures seamless compatibility with a wide range of components, while the Armoury Crate software offers full control of system settings via a single dashboard.
ASUS Exclusive Software
The motherboard comes bundled with a range of ASUS-exclusive software, including Armoury Crate, Aura Creator, and Aura Sync AI Suite 3, providing a complete, high-performance gaming package with a long list of features to improve your experience.
Part ID: #CAN-00986
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus TUF GAMING A520M-PLUS II AMD AM4 mATX Motherboard
|
In Stock | Call for Price | 2 hours ago | |
|
TechLand BD
ASUS TUF GAMING A520M-PLUS II AM4 MICRO-ATX AMD MOTHERBOARD
|
In Stock | 12,100 | 2 hours ago | |
|
PC House
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
|
In Stock | 12,290 | 2 hours ago | |
|
Sell Tech
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
|
In Stock | 12,400 | 2 hours ago | |
|
Skyland BD
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
|
In Stock | 12,400 | 2 hours ago | |
|
Star Tech
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
|
In Stock | 12,500 | 2 hours ago | |
|
Netstar
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
|
In Stock | 12,500 | 2 hours ago | |
|
Ultra Technology
ASUS TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
|
In Stock | 12,700 | 2 hours ago | |
|
Global Brand PLC
ASUS TUF GAMING A520M-PLUS II micro ATX Motherboard
|
In Stock | 12,900 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
A520
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
microATX 24.4cm x 24.4cm
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
D-Sub (s)
1 x D-Sub
USB (s)
4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet TUF LANGuard
Supported Storage
AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10
Audio
3 x Audio jacks
Internal I/O Ports
Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
TUF GAMING A520M-PLUS II
Supported CPU
Ryzen 5000/ 4000 G/ 3000 Series
Supported RAM
4 x DIMM, Max. 128GB, DDR4
Graphics Output
1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
Features
Onboard RGB headers
Part ID: #CAN-00986
Last Updated: 4 hours ago
