Product Description

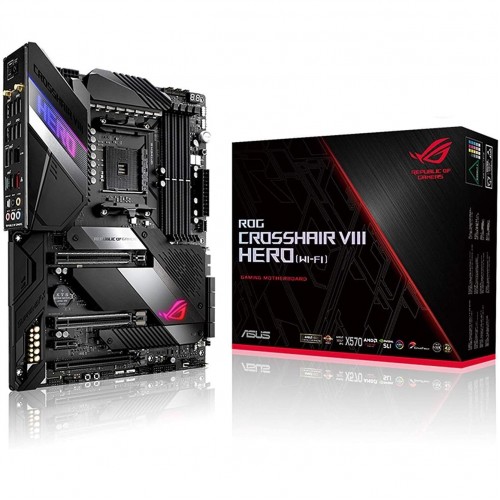

ASUS ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
The ASUS ROG X570 Crosshair VIII Hero WI-FI is an exceptional ATX gaming motherboard designed for AMD Ryzen processors, specifically catering to the AM4 socket 3rd and 2nd generation AMD Ryzen processors, including the Ryzen 5000 series. This motherboard boasts top-notch gaming performance, cutting-edge features, and superior build quality, making it a powerful foundation for creating a high-end gaming rig.
Main FeaturesThis motherboard offers:
- Advanced audio system with ROG SupremeFX 8-Channel High Definition Audio CODEC and SupremeFX Shielding Technology
- Support for NVIDIA 2-Way SLI Technology and AMD 3-Way CrossFireX Technology
- 4 DIMM slots supporting up to 128GB of DDR4 RAM
- Intel I211-AT and Realtek RTL8125-CG 2.5G LAN for low-latency and reliable online gaming experiences
- Wi-Fi 6 AX200 with MU-MIMO and Bluetooth 5.0 for enhanced wireless connectivity options
The ROG X570 Crosshair VIII Hero WI-FI features several advanced technologies, including:
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
- Comprehensive Thermal Design: Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone
- Robust Power Delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- Industry-Leading ROG Audio: ROG SupremeFX S1220 is combined with the venerable ESS ES9023P to deliver high-fidelity audio to headsets and exotic cans
Part ID: #CAN-02182
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
BASIC INFORMATION
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Basic Information
Chipset
AMD X570
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS ES9023P - Supports up to 32-Bit/192kHz playback Audio Feature : - Sonic Studio III + Sonic Studio Virtual Mixer - DTS Sound Unbound - Optical S/PDIF out port(s) at back panel - Sonic Radar III
CPU
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Memory
Memory
Type: Dual Channel Memory Architecture Slots: 4 x DIMM slots Supported Memory: 3rd Gen AMD Ryzen Processors 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU Maximum Memory: 128GB
Storage
3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Graphics
Graphics
3rd and 2nd Gen AMD Ryzen /3rd Gen AMD Ryzen with Radeon Graphics Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology
Connector & Ports
LAN
Intel I211-AT Realtek RTL8125-CG 2.5G LAN ASUS LAN Guard ROG GameFirst Technology
Internal I/O Ports
2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
USB Port
3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) AMD X570 chipset : 6 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 4 x USB 2.0 port(s)
WARRANTY INFORMATION
Manufacturing Warranty
03 Years Warranty
