Product Description
Engineered by ASUS, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **56,500 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01465
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
1 x Realtek 5G EthernetASUS LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
WiFi
Wi-Fi 72x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Slots
Intel Core Ultra Processors (Series 2)1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset2 x PCIe 4.0 x16 slots (supports x4 mode)
Memory
4 x DIMM slots, max. 256GB, DDR5Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports Intel Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexDIMM FitASUS Enhanced Memory Profile III (AEMP III)
Chipset
Intel Z890 Chipset
Graphics
1 x DisplayPort1 x HDMI port
Warranty
3 Year
Bluetooth
Bluetooth v5.4
Accessories
Cables2 x SATA 6Gb/s cablesAdditional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package 1 x ROG key chain1 x ROG Strix stickers4 x M.2 rubbersDocumentation1 x Quick start guide
Form Factor
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Output
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features- SupremeFX Shielding Technology- Savitech SV3H712 AMP- Gold-plated audio jacks- Rear optical S/PDIF out port - Premium audio capacitors- Audio cover
Supported CPU
Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Operating System
Windows 11 (22H2 & later)
Special Features
Extreme Engine Digi+- 5K Black metallic capacitorsASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution - M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headersRear USB 20Gbps with PD Fast Charge Support- Support: up to 30W fast charging and USB Wattage Watcher- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A- Compatible with PD3.0
Software Features
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power Saving- ASUS AI Advisor- ASUS Driver Hub- ASUS GlideX- USB Wattage Watcher- TurboV Core - Adobe Creative Cloud (Free Trial)- Norton 360 for Gamers (60 Days Free Trial)- WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideNPU BoostASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFlexKey
Supported Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s portsIntel Core Ultra Processors (Series 2)*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)Intel Z890 ChipsetM.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports
External I/O Ports
2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge**)4 x USB 10Gbps ports (4 x Type-A)4 x USB 5Gbps ports (4 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Realtek 5Gb Ethernet port2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Ports
Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headerPower Related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s ports USB1 x USB 20Gbps connector (supports USB Type-C )1 x USB 5Gbps header support 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Chassis Intrusion header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt (USB4) header
Part ID: #CAN-01465
Last Updated: 2 days ago

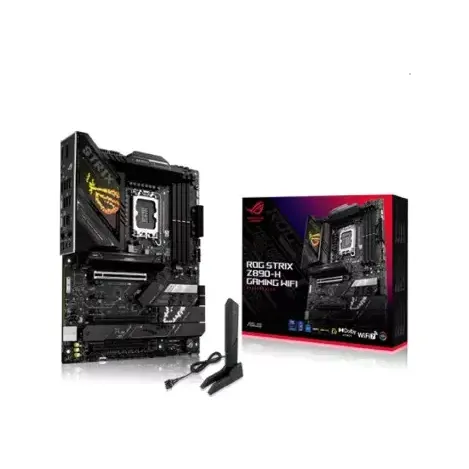

Asus ROG STRIX Z890-H Gaming WiFi motherboard is built for next-generation performance with support for Intel Socket LGA1851 Core Ultra Processors (Series 2). It also integrates Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0, ensuring optimal performance under demanding workloads.Advanced Memory PerformanceEquipped with 4 DIMM slots, this board supports up to 256GB DDR5 memory with speeds up to 9066+ MT/s (OC). Features like Dual Channel architecture, Intel XMP, DIMM Flex, and ASUS Enhanced Memory Profile III (AEMP III) ensure seamless memory optimization for gaming and multitasking.High-Speed Storage OptionsThe Z890 chipset delivers versatile storage with 4x M.2 slots and 4x SATA 6Gb/s ports. The M.2_1 slot supports PCIe 5.0 x4, ensuring lightning-fast data speeds, while the additional M.2 slots offer PCIe 4.0 and SATA flexibility for multiple storage configurations.Exceptional ConnectivityThis motherboard comes with next-gen networking, including Realtek 5G Ethernet and Wi-Fi 7 for ultra-fast wireless performance. Bluetooth 5.4 further enhances device connectivity. External I/O ports include multiple USB 20Gbps Type-C ports with up to 30W PD fast charging, USB 10Gbps, USB 5Gbps, HDMI, and DisplayPort.Immersive Audio ExperienceFeaturing the Realtek ALC1220P codec, SupremeFX shielding technology, Savitech AMP, and premium gold-plated audio jacks, the board delivers high-definition 7.1 surround sound with 120 dB SNR playback. It is ideal for gamers and content creators who demand crystal-clear audio.Exclusive ASUS FeaturesWith Q-Design innovations such as M.2 Q-Latch, PCIe Q-Release Slim, Q-Antenna, and Q-LED indicators, installation and troubleshooting become much easier. Aura Sync RGB support allows full personalization with addressable Gen 2 headers.Premium Build and AccessoriesThe ROG STRIX Z890-H Gaming WiFi features an ATX form factor with robust VRM heatsinks, M.2 backplate cooling, and a pre-mounted I/O shield. It also includes useful accessories such as SATA cables, a WiFi antenna, M.2 Q-Latch package, and ROG-themed extras...
