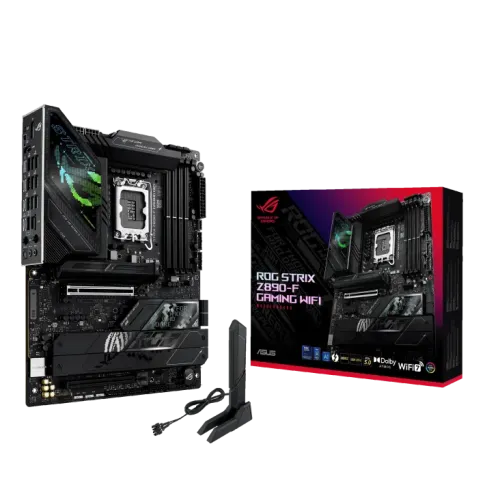

ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard

Motherboard • Brand: ASUS • Aggregating live prices from leading computer stores in Bangladesh.

Status
In Stock
5 listings tracked
Lowest Deal 66,000 Best Deal
Price Range 66,000 to 66,700 Save 1%
ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard

Product Description

Engineered by ASUS, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **66,000 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01169 Last Updated: 2 days ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
In Stock 66,000 2 hours ago
TechLand BD Asus ROG STRIX Z890-F GAMING WIFI DDR5 Intel Motherboard
In Stock 66,000 2 hours ago
Creatus Computer ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
In Stock 66,199 2 hours ago
Ultra Technology ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
In Stock 66,500 2 hours ago
Skyland BD ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
In Stock 66,700 2 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF outport - Premium audio capacitors - Audio cover

Expansion Slots

PCI Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in support site
M.2 Socket Supports 5 x M.2 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Memory

Type DDR5
Slots 4 x DIMM slots
Supported Memory Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
Maximum Memory 192GB

Graphics

Graphics 1 x DisplayPort 1 x HDMI port 2 x Intel Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
USB (s) Rear USB (Total 14 ports) 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports Front USB (Total 9 ports) 1 x USB 20Gbps connector (1 x USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
LAN Port (s) 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4
Supported Storage 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Audio 2 x Gold-plated audio jacks
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Others

Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers
Bundled Software ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost FlexKey

Warranty Information

Manufacturing Warranty 3 Year Warranty

Key Features

Model ROG STRIX Z890-F GAMING WIFI
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5, Max 192GB,Supports Up to 8600+MT/s (OC),
Graphics Output 1x HDMI,, 1x DisplayPort, 2x Intel Thunderbolt 4
Features 5x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01169 Last Updated: 2 days ago
ASUS ROG STRIX Z890-F GAMING WIFI DDR5 ATX MotherboardThe ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard is a top-tier choice for gamers and tech enthusiasts, offering exceptional performance and cutting-edge features. Designed to support the latest Intel Core Ultra processors with the LGA 1851 socket, it ensures powerful and efficient processing. The motherboard features four DIMM slots that can accommodate up to 192GB of DDR5 memory, supporting overclocked speeds of up to 8600+ MT/s for unparalleled memory performance. Advanced AI capabilities, including AI Overclocking, AI Cooling II, and AI Networking II, optimize system performance, cooling, and network settings automatically. With a robust power design featuring 16+1+2+2 power stages, it delivers stable and reliable power even under heavy loads. Connectivity options are extensive, with WiFi 7, two Thunderbolt 4 ports, and a USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging. Storage is ample with five M.2 slots, including one PCIe 5.0 NVMe SSD slot with M.2 Q-release, and the PCIe 5.0 x16 SafeSlot supports next-gen graphics cards. The motherboard also includes DIMM Flex and AEMP III for enhanced memory stability and performance. Aesthetically, it features Polymo Lighting for a customizable RGB lighting experience, and its EZ PC DIY design ensures straightforward installation and setup. With its comprehensive feature set and robust design, the ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard is the ultimate choice for building a high-performance gaming or workstation PC.Advanced Connectivity and NetworkingThe ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard is equipped with cutting-edge connectivity options to ensure seamless and ultra-fast data transfer. It features WiFi 7 with the ASUS WiFi Q-Antenna, providing superior wireless performance and stability, ideal for gaming and streaming. Additionally, the motherboard includes two Thunderbolt™ 4 ports, offering high-speed data transfer and versatile connectivity options for various peripherals. The USB 10Gbps Type-C® rear I/O port supports up to 30-watt Power Delivery fast charging, ensuring your devices are always powered up and ready to go. These advanced networking features make the ROG STRIX Z890-F a future-proof choice for any high-performance PC build.Robust Power and Cooling SolutionsDesigned to handle the most demanding tasks, the ROG STRIX Z890-F boasts a robust power design with 16+1+2+2 power stages, ensuring stable and reliable power delivery even under heavy loads. This is complemented by advanced cooling solutions, including multiple heatsinks and fan headers, which help maintain optimal temperatures during intense gaming sessions or heavy workloads. The AI Cooling II technology further enhances cooling efficiency by automatically adjusting fan speeds based on system temperatures, ensuring a quiet and cool operation. These features collectively ensure that your system remains stable and performs at its best, even during peak usage.Enhanced Storage and ExpansionThe motherboard offers extensive storage options with five M.2 slots, including one PCIe® 5.0 NVMe® SSD slot with M.2 Q-release, providing ample space for high-speed storage devices. This allows for faster boot times, quicker application loading, and overall improved system responsiveness. The PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim supports next-generation graphics cards, ensuring your system is ready for future upgrades. Additionally, the DIMM Flex and AEMP III technologies enhance memory stability and performance, making the ROG STRIX Z890-F an excellent choice for users looking to build a high-performance gaming or workstation PC.Buy ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard from Star TechIn Bangladesh, you can get original ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard From Star Tech. We have a large collection of latest Asus Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard comes with a 3-year Warranty.
