Product Description

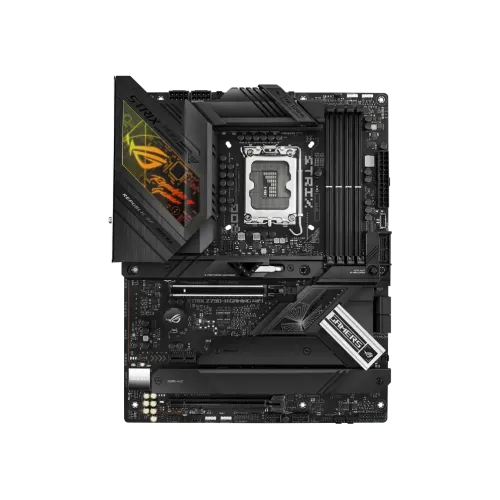

Unleash Unparalleled Gaming Performance with the ASUS ROG STRIX Z790-H GAMING WIFI DDR5 Motherboard
The ASUS ROG STRIX Z790-H GAMING WIFI DDR5 motherboard is specifically designed for gamers and enthusiasts seeking to build a high-performance PC that delivers exceptional speed, agility, and responsiveness. This top-of-the-line motherboard is engineered to provide an unparalleled gaming experience, with cutting-edge features and innovative technologies that elevate your PC to new heights.
Key Features and BenefitsThe ASUS ROG STRIX Z790-H GAMING WIFI DDR5 motherboard boasts a range of impressive features, including:
- Intel LGA 1700 Socket Support: Compatible with 13th-gen Intel Core and 12th-gen Intel Core, Pentium Gold, and Celeron processors.
- PCIe 5.0 x16 SafeSlot: Offers enhanced stability and support for high-performance graphics cards.
- 4 x PCIe 4.0 M.2 Slots: Provides extensive M.2 support with heatsinks, including a combo sink extension and backplate for additional cooling.
- Wi-Fi 6E and Intel 2.5Gb Ethernet: Delivers high-performance networking with built-in WiFi 6E and 2.5Gb Intel Ethernet with ASUS LANGuard.
- Intel Extreme Memory Profile (XMP): Supports up to 128GB of DDR5 memory with optimized performance and stability.
The ASUS ROG STRIX Z790-H GAMING WIFI DDR5 motherboard incorporates several innovative technologies, including:
Extreme Engine Digi+: A robust power solution with 16 + 1 power stages rated for 80A, dual ProCool II power connectors, and high-quality alloy chokes.
Optimized VRM Thermals: Massive heat sinks connected by an L-shaped heat pipe, high-conductivity thermal pads, and an integrated I/O shroud for improved cooling efficiency.
Aura RGB and Addressable Gen 2 Headers: Supports customizable lighting and effects with Aura RGB and Addressable Gen 2 headers.
ASUS Exclusive Software: Includes ROG-exclusive software, such as GameFirst VI, ROG CPU-Z, and Aura Creator, to simplify setup and improve performance.
Part ID: #CAN-01403
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus ROG STRIX Z790-H GAMING WIFI DDR5 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
Asus ROG STRIX Z790-H GAMING WIFI DDR5 13th Gen ATX Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
Computer Village
Asus ROG STRIX Z790-H GAMING WIFI DDR5 ATX Motherboard
|
In Stock | 50,500 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th 13th Gen Intel Core & 12th Gen Intel® Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z790 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode) 1 x PCIe 3.0 x1 slot
M.2 Socket
Total supports 4 x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Intel 2.5Gb Ethernet port ASUS LANGuard
Wireless Communication module
Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3
Supported Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio
5 x Gold-plated audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
Others
Special Features
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner - System Information MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
ROG STRIX Z790-H GAMING WIFI DDR5
Supported CPU
14th 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DIMM, Max. 128GB, DDR5
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
1 x Realtek 2.5Gb Ethernet, Wi-Fi 6E
Part ID: #CAN-01403
Last Updated: 1 month ago
