Product Description

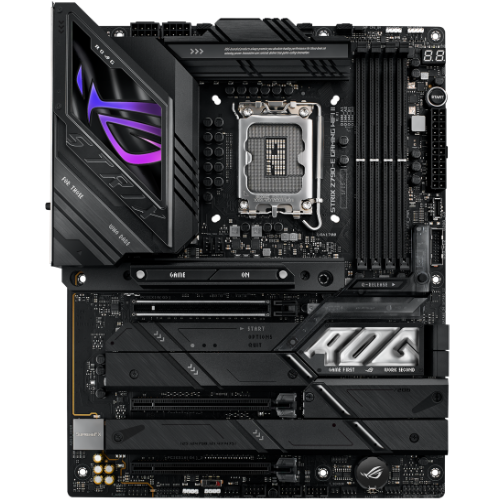

Unleash Your Gaming Potential with the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard
Designed for gamers, enthusiasts, and professionals, the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard offers unparalleled performance, innovative features, and sleek aesthetics to power your high-end PC.
Technical Specifications and Key Features
Key Highlights:
- Supports up to 192GB of DDR5 RAM with overclocked speeds of 8000+ (O.C.)
- PCIe 5.0 x16 slot for improved graphics performance
- Intel 2.5Gb Ethernet and Intel Wi-Fi 7 for fast and reliable wired and wireless connectivity
- Five M.2 slots for increased storage options
- Supports 14th, 13th, and 12th Gen Intel Processors with LGA1700 socket
Proprietary Technologies and Performance Enhancements
ASUS Exclusive Features:
The ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard boasts a range of innovative technologies designed to enhance performance and user experience. The Q-Design feature set simplifies the building and upgrading process, while the Extreme OC Kit and 5K Black Metallic Capacitors provide improved overclocking capabilities. The motherboard also features ASUS Thermal Solution, including M.2 heatsink backplate, M.2 heatsink, and VRM heatsink design, to ensure efficient cooling and optimal system performance.
Part ID: #CAN-01417
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard
|
In Stock | Call for Price | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z790 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Expansion Slots
PCI
Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot (support x16 mode) Intel Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode)
M.2 Socket
5 x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex OptiMem II ASUS Enhanced Memory Profile II (AEMP II)
Maximum Memory
192GB
Graphics
Graphics
Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )** 2 x USB 5GGps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A
LAN Port (s)
1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4
Supported Storage
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio
5 x Gold-plated audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) 2 x USB 5Gbps headers support 4 additional USB 5G ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alternation PCIe Mode Switch 1 x AURA RGB header 1 x CPU over voltage jumper 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Others
Special Features
Extreme OC Kit - Start button Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A - Compatible with PD3.0
Bundled Software
ROG Exclusive Software - ROG CPU-Z - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Sonic Studio - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus USB Wattage Watcher Intel Unison Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey MemTest86
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
ROG STRIX Z790-E GAMING WIFI II
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR5, Max 192GB 8000+(O.C.)
Graphics Output
1x HDMI port, 1x DisplayPort
Features
1 x Intel 2.5Gb Ethernet, Intel Wi-Fi 7
Part ID: #CAN-01417
Last Updated: 1 month ago
