Product Description

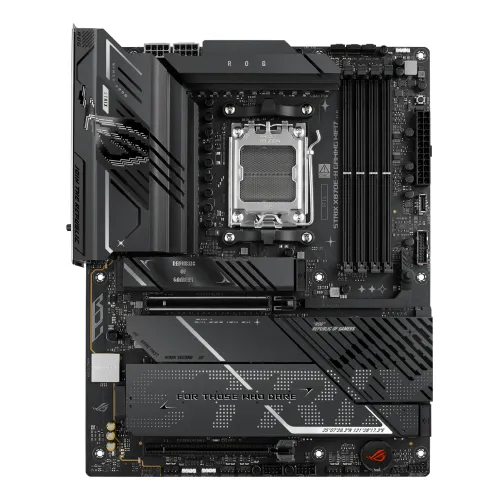

Engineered by ASUS, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **71,000 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01172
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
ASUS ROG STRIX X870E-H GAMING WIFI7 AM5 DDR5 ATX Gaming Motherboard
|
In Stock | 71,000 | 3 hours ago | |
|
Star Tech
Asus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Motherboard
|
In Stock | 71,500 | 3 hours ago | |
|
Ultra Technology
Asus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Motherboard
|
In Stock | 71,500 | 2 hours ago | |
|
Global Brand PLC
ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard
|
In Stock | 72,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870E
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Expansion Slots
PCI
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types.
M.2 Socket
Supports 4 x M.2
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit / DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
256GB
Graphics
Graphics
1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1x HDMI
USB (s)
Rear USB (Total 14 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge)** 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s)
1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 7 (Realtek® RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary,
Supported Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2280/22110 (Not supports)** AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. ** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
RAID
AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header Back Panel I/O Ports 2 x USB4® (40Gbps) ports(2 x USB Type-C®) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge)** 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Others
Special Features
Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync -Addressable RGB Gen 2 headers
Bundled Software
ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst ASUS AI Advisor ASUS DriverHub - AIDA64 Extreme (60 days free trial) - HWiNFO ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
ROG STRIX X870E-H GAMING WIFI7
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000/8000 & 7000 Series Processors
Supported Memory
4 x DDR5 DIMM, up to 8000+MT/s(OC), Max. 256GB
Graphics
1 x HDMI , 2x USB4 (up to 40Gbps transfer rate)
Features
1 x Realtek 5Gb Ethernet, Wi-Fi 7, Bluetooth V5.4
Part ID: #CAN-01172
Last Updated: 2 days ago
The ASUS ROG STRIX X870E‑H GAMING WIFI7 AMD AM5 ATX Motherboard is a high‑performance platform designed for gamers, creators, and PC enthusiasts. Powered by the AMD X870E chipset and supporting Ryzen 9000, 8000, and 7000 series processors, this ASUS ROG STRIX Motherboard delivers cutting‑edge speed, stability, and connectivity. With PCIe 5.0, DDR5 memory support, WiFi 7, and advanced cooling, it’s built to handle next‑generation gaming and productivity workloads.Performance and CompatibilityFeaturing the AMD AM5 socket, the ASUS ROG STRIX X870E‑H GAMING WIFI7 supports the latest Ryzen CPUs, ensuring future‑ready performance. With 4 DDR5 DIMM slots, it supports up to 256GB of high‑speed memory, reaching speeds beyond 8000 MT/s (OC). This Asus 870 Motherboard is optimized for overclocking, multitasking, and demanding applications, making it ideal for gamers and professionals alike.Expansion and StorageThe motherboard offers extensive expansion with 1 PCIe 5.0 x16 SafeSlot for graphics cards and an additional PCIe 4.0 x16 slot. Storage flexibility includes 4 M.2 slots (2 PCIe 5.0, 2 PCIe 4.0) with dedicated heatsinks and Q‑Latch for tool‑free installation. This ASUS PCIe 5.0 Motherboard ensures blazing‑fast SSD performance for gaming, content creation, and AI workloads.Connectivity and I/O FeaturesThe ASUS ROG STRIX X870E‑H Gaming WiFi 7 Motherboard provides next‑gen connectivity with dual USB4 Type‑C ports (40Gbps), multiple USB 10Gbps Type‑A ports, and front panel USB 20Gbps Type‑C with 30W PD support. Networking is powered by Realtek 5Gb Ethernet and integrated WiFi 7 with Bluetooth 5.4, delivering ultra‑fast, stable connections for competitive gaming and professional workflows.Audio and Gaming ExperienceEquipped with SupremeFX audio powered by Realtek ALC1220P codec and Savitech AMP, this ASUS ROG STRIX Motherboard delivers immersive sound with 120dB SNR playback. Premium capacitors and shielding ensure crystal‑clear audio for gaming, streaming, and content creation.Cooling and DesignDesigned for high‑performance builds, the ASUS ROG STRIX X870E‑H GAMING WIFI7 features massive heatsinks, integrated I/O covers, and M.2 backplates for Gen5 SSDs. DIY‑friendly features like PCIe Slot Q‑Release, M.2 Q‑Latch, BIOS FlashBack™, and Clear CMOS button make installation and upgrades simple. With ROG’s bold design and RGB lighting, it enhances both aesthetics and functionality.Buy Asus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Motherboard from Star TechIn Bangladesh, you can get original Asus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Asus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Motherboard comes with 3 years of warranty.
