Status
In Stock
4 listings tracked
Lowest Deal
68,500
Best Deal
Price Range
Single price listing
Product Description
Engineered by ASUS, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **68,500 ৳**, compared dynamically across 4 major computer shops.
Part ID: #CAN-01171
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
|
In Stock | 68,500 | 3 hours ago | |
|
TechLand BD
ASUS ROG Strix X870-F Gaming Wifi DDR5 AMD AM5 ATX Motherboard
|
In Stock | 68,500 | 3 hours ago | |
|
Skyland BD
Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
|
In Stock | 69,500 | 2 hours ago | |
|
PCB Store
ASUS ROG STRIX X870-F GAMING WIFI DDR5 AM5 ATX Motherboard
|
Check Stock | 69,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Expansion Slots
PCI
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket
Supports 4 x M.2 slots AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
192GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs * Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
Rear USB (Total 12 ports) 2 x USB4 (40Gbps) ports(2 x USB Type-C with DP Alt mode) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s)
1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4
Supported Storage
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled. M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Others
Special Features
Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers
Bundled Software
ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher FlexKey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
ROG STRIX X870-F GAMING WIFI
Supported CPU
AMD Socket AM5 for Ryzen 9000/8000 & 7000 Series Processors
Supported Memory
4 x DIMM slots, max. 192GB, DDR5, Up to 8000+MT/s(OC) with Ryzen
Graphics Output
1 x DisplayPort, 1 x HDMI port, 2x USB4 (up to 40Gbps transfer rate)
Features
1 x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth V5.4
Part ID: #CAN-01171
Last Updated: 2 days ago

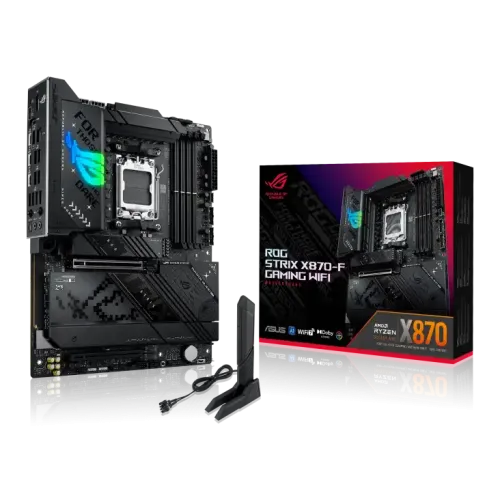

The Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard is a powerful gaming and performance motherboard. Supporting desktop AMD RyzenTM 9000, 8000, and 7000 series processors, it makes use of the AMD X870 chipset for powerful computing. With four DIMM slots, the board can support up to 192GB of DDR5 RAM and overclock it to above 8000 MT/s for peak performance. Two USB4 (40Gbps) ports with Type-C display outputs, DisplayPort (up to 8K) and HDMI (up to 4K) are included in the graphics support. The flexible expansion slots on the Asus ROG STRIX X870-F GAMING WIFI DDR5 AM5 Motherboard include PCIe 5.0 x16 for RyzenTM 9000 and 7000 series CPUs and PCIe 4.0 x16 for Ryzen 8000 processors. Four M.2 slots that support PCIe 5.0 and PCIe 4.0 are available for storage options, along with PCIe and SATA RAID configurations. It combines cutting-edge Wi-Fi 7 with Intel® 2.5Gb Ethernet for networking, providing up to 6.5Gbps transfer rates. There are numerous USB ports on the Asus ROG STRIX X870-F GAMING WIFI DDR5 AM5 Motherboard, including two USB4® Type-C® (40Gbps), six USB 10Gbps, and four USB 5Gbps connectors on the back. The front panel offers flexibility for devices with one USB 20Gbps Type-C® connector, USB 5Gbps headers, and USB 2.0 headers. The ROG SupremeFX 7.1 surround sound system, which includes a Savitech SV3H712 AMP and an ALC4080 codec, powers the audio. Aura Sync lighting, heatsinks for enhanced thermal management, and simple installation options like the BIOS FlashBack button and pre-mounted I/O shield are among the extra features. With features like Armoury Crate, Fan Xpert 4, Dolby Atmos, and AI overclocking support, the Asus ROG STRIX X870-F GAMING WIFI DDR5 AM5 Motherboard offers optimal performance for all gaming and creative applications. Because it is Windows 11 optimized, this ATX form factor board is a great option for PC enthusiasts and gamers.Buy Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard from Star TechIn Bangladesh, you can get original Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard comes with 3 years warranty.
