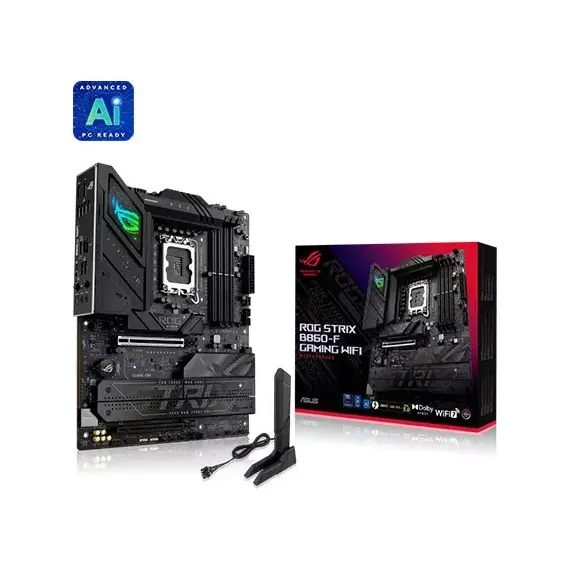

ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard

Status
In Stock
3 stores
Lowest 43,000 BDT
Price Range 43,000 to 44,000 BDT Save 2%
ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard

Product Description

Unleash Unparalleled Gaming Performance with the ASUS ROG STRIX B860-F GAMING WIFI

Designed for the most demanding gamers and content creators, the ASUS ROG STRIX B860-F GAMING WIFI motherboard delivers unparalleled performance and features for the latest Intel LGA1851 socket, supporting Intel Core Ultra Series 2 processors. With cutting-edge technologies and robust connectivity options, this motherboard is the perfect choice for those seeking to elevate their gaming and productivity experience.

Key Features and Performance Highlights

Experience the best of gaming performance with the following key features:

  • Support for up to 256GB DDR5 memory with speeds up to 9066MT/s (OC)
  • 4 M.2 slots (PCIe 5.0 & PCIe 4.0) and 4 SATA 6Gb/s ports with RAID 0/1/5/10 support
  • Wi-Fi 7 (802.11be) and 2x2 antennas for ultra-fast connectivity
  • DisplayPort, HDMI, and Thunderbolt 4 outputs supporting resolutions up to 8K@60Hz with DSC
  • Robust sound quality with ROG SupremeFX ALC4080 codec and premium capacitors
Proprietary Technologies and Enhancements

The ASUS ROG STRIX B860-F GAMING WIFI motherboard boasts innovative technologies and enhancements designed to optimize performance and user experience:

Q-Design Features: M.2 Q-Latch, PCIe Q-Release Slim, and pre-mounted I/O shield for easy installation.

Enhanced Cooling: M.2 heatsinks, VRM heatsinks, and backplates for efficient heat dissipation and reduced noise.

Software and Extras: Bundled with Armoury Crate, Aura Sync RGB, Dolby Atmos, and AIDA64 (trial) for deep customization and enhanced gaming experience.

Part ID: #CAN-01479 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
In Stock 43,000 5 hours ago
Buy Now
Ultra Technology ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
In Stock 43,400 5 hours ago
Buy Now
Global Brand PLC ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
In Stock 44,000 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080: - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-bit/384 kHz playback on the front panel Audio Features: - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF outport - Premium audio capacitors- Audio cover
Brand ASUS
Color Black
Model ROG STRIX B860-F GAMING WIFI
Wi-Fi Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Memory 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module DIMM Fit ASUS Enhanced Memory Profile III (AEMP III)
Chipset Intel B860 Chipset
Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with an SSD device, PCIEX16(G4) will be disabled. Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Features Advanced AI PC-ready, PCIe 5.0 s​​​​lots, WiFi 7, AI Intelligence, EZ PC DIY
Graphics 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. Supports 8K@60Hz with DSC as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth of up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. VGA resolution support depends on the processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card
I/O Port Back Panel I/O Ports: 1 x Thunderbolt 4 (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Bluetooth v5.4
CPU Socket Intel Socket LGA1851 for Intel Core Ultra Processors(Series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers Documentation 1 x Quick Start guide
Form Factor Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Other Features Manageability: WOL by PME, PXE
Expansion Slots Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Special Features Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers
Software Features ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving ASUS Driver Hub AIDA64 Extreme (60 days free trial) HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Operating System Support Windows 11 (22H2 & later)
Part ID: #CAN-01479 Last Updated: 1 month ago
