Product Description
Engineered by ASUS, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **39,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01133
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard
|
In Stock | 39,500 | 3 hours ago | |
|
Sell Tech
Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard
|
In Stock | 39,500 | 3 hours ago | |
|
Creatus Computer
Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard
|
In Stock | 39,600 | 3 hours ago | |
|
Ultra Technology
Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard
|
In Stock | 39,700 | 2 hours ago | |
|
Skyland BD
Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard
|
In Stock | 39,800 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset
INTEL B860
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Supports up to 32-Bit/192 kHz
Expansion Slots
PCI
Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* * M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
M.2 Socket
4 x M.2
Memory
Type
DDR5
Slots
4
Supported Memory
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
Maximum Memory Capacity 256GB
Graphics
Graphics
1 x DisplayPort** 1 x HDMI™ port*** 1 x USB4® (20Gbps) ports support USB Type-C® display outputs**** * Graphics specifications may vary between CPU types
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4a
USB (s)
Rear USB (Total 10 ports) 1 x USB4 (20Gbps) port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4***
Supported Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
RAID
SATA RAID 0/1/5/10
Audio
2 x Audio jacks
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 header(s) 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header Back Panel I/O Ports: 1 x USB4 (20Gbps) port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
Others
Special Features
Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers
Bundled Software
ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud 30 Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
Warranty Information
Manufacturing Warranty
3 Year warranty
Key Features
Model
ROG STRIX B860-A GAMING WIFI
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5, Max 256GB, 8600+ MT/s (OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x USB 4 (20Gbps)
Features
4x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01133
Last Updated: 2 days ago

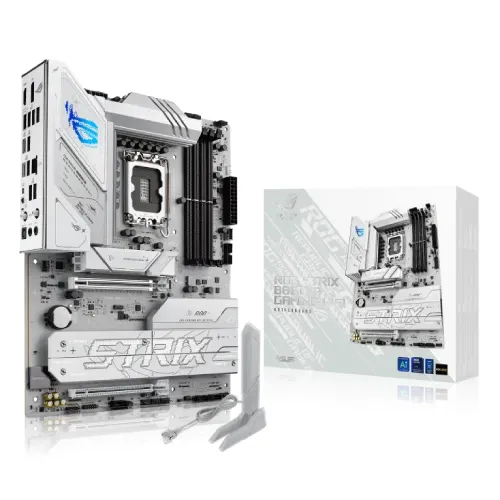

The Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard is a high-end Asus motherboard designed for dedicated gamers and PC enthusiasts. This Asus motherboard supports Intel Core Ultra Processors (Series 2) with the LGA1851 socket, enabling compatibility with the most recent CPU technology. The Asus B860 motherboard supports up to 256GB of DDR5 memory at speeds of up to 8666+MT/s (OC), providing exceptional performance for gaming and high-demand applications. The Asus 860 Series motherboard offers numerous extension possibilities, including one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, and three PCIe 4.0 x16 slots, allowing for broad customization with various peripherals. The storage capabilities are substantial, with 4 M.2 slots and 4 SATA 6Gb/s ports for flexible and fast storage options. Networking has been improved with 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth v5.3 for fast and consistent connectivity. The motherboard's USB ports include USB 20Gbps Type-C, USB 10Gbps Type-A, and USB 2.0, ensuring compatibility with a variety of devices. VRM heatsinks, an M.2 heatsink, and multiple fan headers provide efficient cooling while preserving maximum thermal performance even under high loads. This Asus ATX motherboard also includes ASUS Aura Sync, which allows for custom RGB lighting, as well as EZ PC DIY, which makes it easier to construct and customize. Overall, the Asus WiFi motherboard is engineered to provide steady power, efficient cooling, and superior performance tuning possibilities, making it an excellent choice for gamers and content creators looking for a premium gaming experience.Buy Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard from Star TechIn Bangladesh, you can get original Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard From Star Tech. We have a large collection of latest Asus Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Asus ROG STRIX B860-A GAMING WIFI LGA 1851 ATX Motherboard comes with a 3-years Warranty.
