Product Description

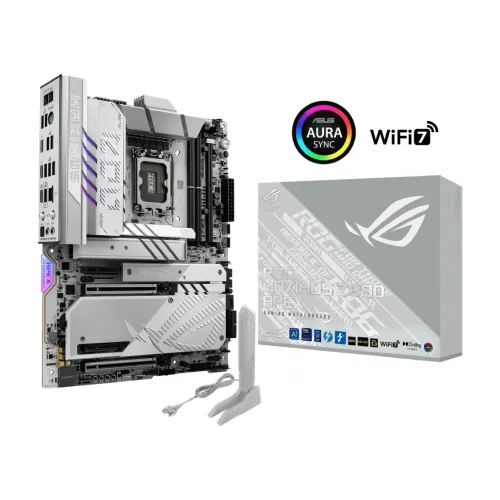

Unleash Unmatched Performance with the ASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard
Designed for extreme overclocking, next-generation gaming, and professional workloads, this flagship motherboard boasts cutting-edge performance, advanced features, and robust build quality. Whether you're a gamer, creator, or overclocking enthusiast, the ASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard delivers a seamless and exhilarating experience.
Key Features and Benefits
- Supports Intel Core Ultra Series 2 processors on the LGA1851 socket, offering record-breaking DDR5 speeds with advanced DIMM Flex, DIMM Fit, and AEMP III technologies.
- Features dual PCIe 5.0 x16 slots for next-gen GPUs and six M.2 slots, including PCIe 5.0 and PCIe 4.0 via ROG DIMM.2 card for ultra-fast storage.
- Includes WiFi 7, Thunderbolt 4, USB 20Gbps Type-C, and 5G LAN, ensuring seamless networking and data transfer.
- Equipped with a robust 22+1+2+2 power stage design for reliable power delivery and AI Overclocking, AI Cooling II, and AI Networking II for intelligent system optimization.
- DIY-friendly features like Q-Release PCIe slots, BIOS FlashBack, and a pre-mounted I/O shield simplify building and upgrading.
ASUS Proprietary Technologies
The ASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard incorporates various proprietary technologies, including:
- SupremeFX Audio with high-quality 120 dB SNR stereo playback output and 113 dB SNR recording input, delivering immersive gaming and entertainment experiences.
- Extreme Engine Digi+ with a 5K Black metallic capacitor design for stable power delivery and overclocking performance.
- AI Overclocking and AI Cooling II for intelligent system optimization and efficient cooling.
Part ID: #CAN-01178
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
ASUS ROG MAXIMUS Z890 APEX Intel LGA1851 ATX Gaming Motherboard
|
In Stock | 78,000 | 5 hours ago | |
|
Global Brand PLC
ASUS ROG MAXIMUS Z890 APEX Intel LGA1851 ATX Gaming Motherboard
|
In Stock | 79,500 | 5 hours ago | |
|
Star Tech
ASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard
|
In Stock | 99,500 | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z890 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Expansion Slots
PCI
Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (supports x4 mode)
M.2 Socket
4 x M.2 slots and 4 x SATA 6Gb/s ports
Memory
Type
DDR5
Slots
4x DIMM slots
Supported Memory
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM Fit ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory
256GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1 x HDMI 2.1
Display Port (s)
1 x DisplayPort 1.4
USB (s)
Rear USB (Total 10 ports) 2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps (1 x USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s)
1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio
2 x Gold-plated audio jacks
Internal I/O Ports
Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Others
Special Features
Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Rear USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0
Bundled Software
ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - ASUS AI Advisor - ASUS Driver Hub - ASUS GlideX - USB Wattage Watcher - TurboV Core - Adobe Creative Cloud (Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
ROG MAXIMUS Z890 APEX
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
2 x DIMM, Max 128GB, Support up to 9600+MT/s (OC)
Graphics Output
2x Thunderbolt 4 (Type-C)
Features
6x M.2 Slot, 1x Realtek 5Gb LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01178
Last Updated: 1 month ago
