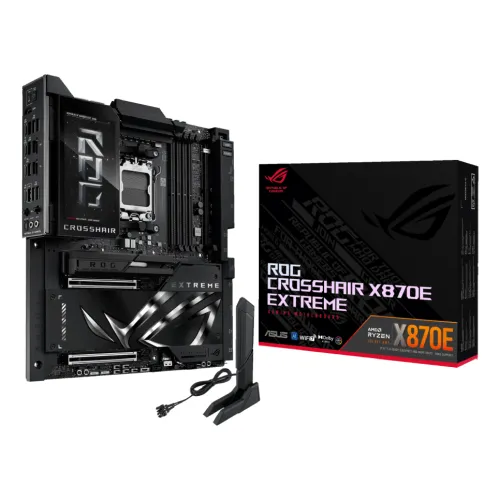

Asus ROG CROSSHAIR X870E EXTREME AMD AM5 E-ATX Motherboard

Product Description

Unleash Uncompromising Performance with the ASUS ROG CROSSHAIR X870E EXTREME

The ASUS ROG CROSSHAIR X870E EXTREME is a cutting-edge motherboard designed for enthusiasts, overclockers, and professionals who demand the best. With its robust feature set, future-ready connectivity, and advanced AI features, this motherboard is the ultimate choice for those seeking uncompromising performance and innovation.

Key Features and Benefits

This motherboard boasts an impressive array of features, including:

  • Advanced AI Features: AI Overclocking, AI Cooling II, and AI Networking II optimize system performance intelligently.
  • Future-Ready Connectivity: dual USB4 ports, USB 20Gbps Type-C front-panel support with Quick Charge 4+, WiFi 7, and 10 GbE LAN.
  • Robust Storage Options: multiple PCIe 5.0 and 4.0 M.2 slots, SlimSAS support, and 4 x SATA 6Gb/s ports.
  • Dynamic Power Delivery: 20+2+2 power stage design ensures stable overclocking.
  • Advanced Cooling Solutions: 3D VC M.2 Heatsink, VRM heatsink design, and M.2 heatsink backplate.
Exclusive ASUS Technologies

The ASUS ROG CROSSHAIR X870E EXTREME also features several proprietary technologies, including:

AI Advisor: a comprehensive AI-powered system monitoring and optimization tool.

ROG Q-DIMM.2: a unique M.2 heatsink backplate design that provides improved cooling efficiency.

SupremeFX: a premium audio solution that delivers high-quality sound and immersive gaming experiences.

BIOS FlashBack: a convenient and safe way to update the motherboard's BIOS.

Aura Sync: a sophisticated lighting control system that allows for customizable and synchronized lighting effects.

Part ID: #CAN-01181 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
In Stock 158,500 5 hours ago
Buy Now
Ultra Technology ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
In Stock 160,000 4 hours ago
Buy Now
Star Tech Asus ROG CROSSHAIR X870E EXTREME AMD AM5 E-ATX Motherboard
In Stock 162,500 1 week ago
Buy Now
Global Brand PLC ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
In Stock 163,000 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD X870E
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
M.2 Socket Supports up to 5 x M.2 slots

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology
Maximum Memory 256GB

Graphics

Graphics 1 x HDMITM port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs***

Connector & Ports

HDMI 1 x HDMI 2.1
USB (s) 2 x USB4 (40Gbps) ports support USB Type-C® display outputs*
LAN Port (s) 1 x Realtek 5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard
Wireless Communication module Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4***
Supported Storage Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.
Audio 2 x LED-illuminated audio jacks
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x VRM Heatsink Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 2 x BCLK button 1 x BIOS Switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 12 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Pause switch Back Panel I/O Ports 2 x USB4 (40Gbps) ports (2 x USB Type-C) 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 1 x Marvell AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Others

Special Features Extreme OC Kit - FlexKey button - LN2 Mode - ProbeIt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot - Q-DIMM.2 ASUS Thermal Solution - Fan bracket - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design - 3D VC M.2 Heatsink ASUS EZ DIY - Backplate - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Dual BIOS Full Color 5" LCD Display Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS
Bundled Software ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - LCD Display ASUS AI Advisor ASUS DriverHub Turbo Vcore ASUS GlideX USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey

Warranty Information

Manufacturing Warranty 3 Years Warranty

Key Features

Model ROG CROSSHAIR X870E EXTREME
Supported CPU Ryzen 9000, 8000/ 7000 Series Processors for Socket AM5
Supported RAM 4 x DDR5, up to 256GB, 9000+MT/s (OC)
Graphics Output 1x HDMI, 2x USB4
Features 1 x 10Gb LAN, 1x5Gb LAN, Wi-Fi 7, Bluetooth 5.4
