Product Description

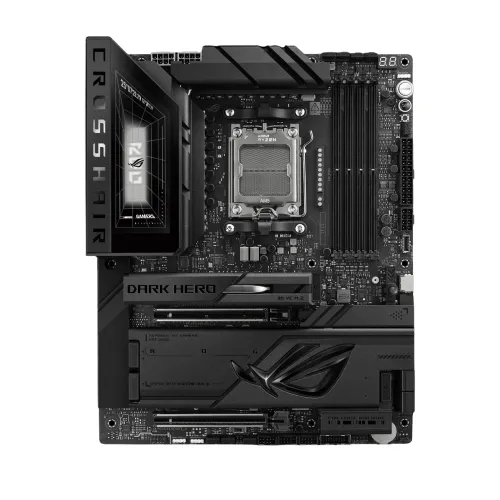

Unleash Uncompromising Performance with the ASUS ROG CROSSHAIR X870E DARK HERO Motherboard
The ASUS ROG CROSSHAIR X870E DARK HERO Motherboard is designed for the most demanding gamers and enthusiasts who require a robust platform for their high-end systems. Built to deliver uncompromising performance, this motherboard supports the latest AMD AM5 processors and DDR5 memory, ensuring ultra-fast data transfer speeds and next-generation GPU compatibility.
Key Features and Benefits
- Next-Gen Connectivity: Features USB4 ports, multiple USB Type-C connections, and 10G Ethernet for lightning-fast networking and seamless data transfer.
- Advanced Power Delivery: Engineered with a robust 20+2+2 power stage design for consistent power delivery and overclocking capabilities.
- AI-Powered Gaming Optimization: Exclusive ASUS AI technologies automatically optimize system performance for smooth gameplay and efficient multitasking.
- Enhanced Cooling: Includes five M.2 slots with integrated heatsinks, including a 3D VC M.2 heatsink for superior thermal management.
- Future-Ready: Supports PCIe 5.0, DDR5 memory, and the latest AMD AM5 processors for future-proof computing.
Exclusive ASUS Technologies
The ASUS ROG CROSSHAIR X870E DARK HERO Motherboard features several proprietary technologies that enhance performance, cooling, and style. These include:
AI Cooling II: Automatically optimizes cooling performance for efficient multitasking and smooth gameplay.
AI Overclocking: Simplifies overclocking and tuning for maximum performance.
AI Cache Boost: Enhances system performance and responsiveness.
Polymo Lighting II: Provides customizable lighting effects for a unique visual appearance.
Part ID: #CAN-01428
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus ROG CROSSHAIR X870E DARK HERO AMD AM5 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
TechLand BD
ASUS ROG CROSSHAIR X870E DARK HERO Ryzen AM5 ATX Gaming Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
PCB Store
ASUS ROG CROSSHAIR X870E Dark Hero AM5 ATX Motherboard
|
In Stock | 112,400 | 5 hours ago | |
|
Global Brand PLC
ASUS ROG CROSSHAIR X870E DARK HERO Ryzen AM5 ATX Gaming Motherboard
|
In Stock | 113,500 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870E
BIOS
64 MB (512Mb) Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors
Expansion Slots
PCI
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
M.2 Socket
Supports 5 x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*" Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
256GB
Graphics
Graphics
1 x HDMI port* 2 x USB4 (40Gbps) ports support USB Type-C display outputs***
Connector & Ports
HDMI
1 x HDMI
USB (s)
Rear USB (Total 11 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C®) Front USB (Total 12 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)** 1 x USB 20Gbps connector (supports USB Type-C®)* 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A **USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
LAN Port (s)
1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4 (suppport LE Audio)***
Supported Storage
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* AMD Ryzen™ 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode) 2 x SATA 6Gb/s ports ASMedia ASM1162 Controller 2 x SATA 6Gb/s ports
RAID
AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10* * SATA ports from ASM1162 cannot support RAID
Audio
2 x Gold-plated audio jacks
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x AIO Q-Connector Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper Back Panel I/O Ports: 2 x USB4 (40Gbps) ports (2 x USB Type-C) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 10Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
Others
Special Features
Asynchronous Clock Extreme OC Kit - FlexKey button - LN2 Mode - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - 1 x DDR5 fan holder - 1 x ROG assistant fan (60mm) - 3D VC M.2 Heatsink - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS
Bundled Software
ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) - Polymo Lighting II ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manager - HWiNFO - ASUS AI Advisor - AIDA64 Extreme (1 year full version) - ASUS GlideX - USB Wattage Watcher - Turbo Vcore WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial)** UEFI BIOS AI Overclocking Guide Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
ROG CROSSHAIR X870E DARK HERO
Supported CPU
Ryzen 9000, 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4 x DDR5, up to 256GB, 9600+MT/s (OC)
Graphics Output
1x HDMI, 2x USB4
Features
1 x 10Gb LAN, 1x5Gb LAN, Wi-Fi 7, Bluetooth 5.4
