Status
In Stock
5 stores
Lowest Deal
81,000 BDT
Best Deal
Price Range
Single price listing
Product Description

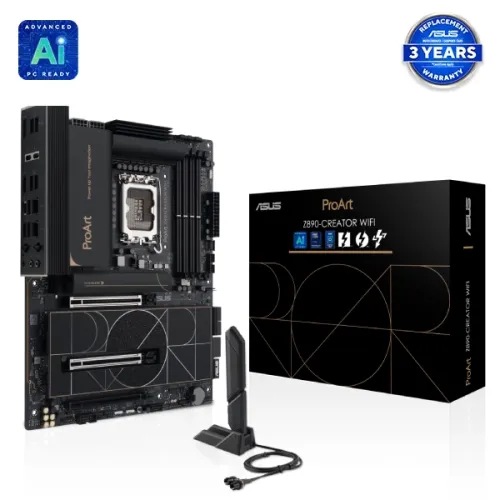

ASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard
Unlock Your Creative Potential
The ASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard is designed for professionals and content creators who demand exceptional performance, reliability, and flexibility. With its cutting-edge features and robust capabilities, this motherboard empowers you to unleash your creativity and take your work to new heights.
Key Features and Benefits
- Supports Intel Core Ultra Processors (Series 2) with LGA 1851 sockets and Intel Z890 chipset for superior computing capabilities
- Four DIMM slots with up to 256GB of DDR5 memory at rates of up to 9066+ MT/s (OC) for smooth multitasking and data processing
- Dual-channel memory design with support for Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III) for improved memory performance and reliability
- One HDMI port and three Thunderbolt ports (two Thunderbolt 5 and one Thunderbolt 4) for multiple high-resolution screens up to 8K
- Wi-Fi 7 compatibility and two Ethernet connections (Marvell AQtion 10Gb and Intel 2.5Gb) for dependable wireless connectivity and high network speeds
Advanced Technologies and Features
ASUS 5X PROTECTION III and Q-Design
The ASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard features ASUS 5X PROTECTION III, which includes DIGI+ VRM, ESD Guards, LANGuard, Overvoltage protection, and SafeSlot. Additionally, it boasts Q-Design, which includes M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, and Q-LED. These advanced technologies and features ensure a reliable, high-performance computing experience.
Part ID: #CAN-01175
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
ASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
Ultra Technology
ASUS ProArt Z890-Creator WiFi Intel LGA1851 ATX Motherboard
|
In Stock | 81,300 | 4 hours ago | |
|
PCB Store
ASUS ProArt Z890-Creator WiFi LGA1851 ATX Motherboard
|
In Stock | 82,000 | 5 hours ago | |
|
Star Tech
ASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard
|
In Stock | 83,000 | 1 week ago | |
|
Global Brand PLC
ASUS ProArt Z890-Creator WiFi Intel LGA1851 ATX Motherboard
|
In Stock | 83,000 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel Z890 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*Audio Features - Gold-plated audio jacks - Premium audio capacitors - Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI
Intel Core Ultra Processors (Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel Z890 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket
Total supports 5 x M.2 slots Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Memory
Type
DDR5
Slots
4 x DIMM slots
Supported Memory
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Support DIMM Fit Support DIMM Flex
Maximum Memory
256GB
Graphics
Graphics
1 x HDMI™ port** 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1 *** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in. *** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in. *** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt cables. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs 1 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs
USB (s)
Rear USB (Total 10 ports) 2 x Thunderbolt™ 5 ports (2 x USB Type-C®) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 port (1 x Type-A ) Front USB (Total 5 ports) 1 x USB 20Gbps (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A
LAN Port (s)
1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.
RAID
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio
2 x Gold-plated audio jacks
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Others
Special Features
ASUS 5X PROTECTION III / - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box headers - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 reliability- Overcurrent protection
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS Driver Hub ASUS GlideX ASUS CPU-Z CreatonFirst ProArt Creator Hub TurboV Core Thunderbolt™ Share USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
TUF GAMING Z890-PRO WIFI
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5, Max 256GB, up to 9066+MT/s (OC)
Graphics Output
1x HDMI, 3x Intel Thunderbolt ports (USB Type-C)
Features
5x M.2, 1x 10Gb LAN, 1x 2.5Gb LAN, Wi-Fi 7, Bluetooth v5.4
Part ID: #CAN-01175
Last Updated: 1 month ago
