Product Description

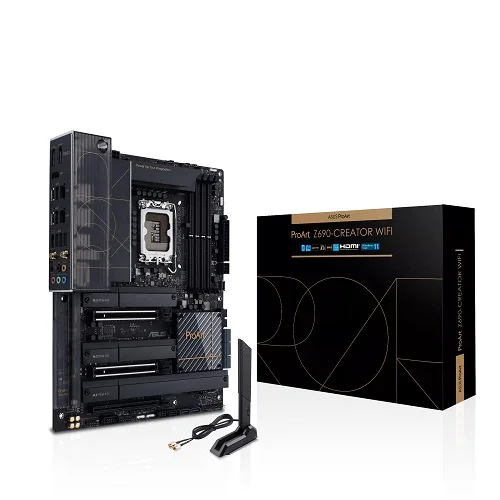

Unleash Your Creativity with the ASUS ProArt Z690-CREATOR WIFI 12th Gen ATX Motherboard
Designed for professional content creators, this motherboard offers unparalleled performance, versatility, and reliability for demanding workloads. With its cutting-edge features and robust connectivity, the ASUS ProArt Z690-CREATOR WIFI 12th Gen ATX Motherboard is the perfect choice for artists, designers, videographers, and other creatives who require a powerful and stable platform for their work.
Key Features and Benefits
- Intel 12th Gen Core Processors Support: Unlock the full potential of your CPU with support for Intel's latest 12th Gen Core processors.
- DDR5 Memory Support: Enjoy faster memory speeds and improved performance with support for DDR5 memory.
- PCIe 5.0 and 4.0 Support: Take advantage of the latest storage and graphics technologies with support for PCIe 5.0 and 4.0.
- Intel Wi-Fi 6E and 10Gb Ethernet: Stay connected with fast and reliable Wi-Fi 6E and 10Gb Ethernet connectivity.
- Advanced Audio Features: Experience high-quality audio with Realtek's S1220A 7.1 Surround Sound High Definition Audio CODEC.
Proprietary Technologies and Features
ASUS 5X PROTECTION III and Q-Design
The ASUS ProArt Z690-CREATOR WIFI 12th Gen ATX Motherboard features ASUS 5X PROTECTION III, which includes DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, LANGuard, and Overvoltage Protection. Additionally, the motherboard boasts ASUS Q-Design, which includes M.2 Q-Latch, Q-Connector, Q-DIMM, Q-LED, and Q-Slot. These proprietary technologies and features ensure reliable performance, easy maintenance, and exceptional user experience.
Part ID: #CAN-01963
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Key Features
Form Factor
ATX
Basic Information
Supported CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 10 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Z690
BIOS
256 Mb
Form Factor
ATX 30.5cmx24.5cm
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit
Memory
Ram Type
DDR5
Type
DDR5
Slots
4 x DIMM
Supported Memory
DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
128GB
Expansion Slots
PCI
Intel 12th Gen Processors 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)
Graphics
Graphics
1 x HDMI port 2 x Intel Thunderbolt 4 ports USB Type-C
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
2 x DisplayPort (Input only)
USB (s)
Rear USB: Total 8 ports 2 x Thunderbolt 4 port(s) (2 x USB Type-C with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)
1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet ASUS LANGuard
Wireless Communication module
Intel Wi-Fi 6E Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready
Supported Storage
Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty
3 years
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box Headers - ProCool II - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s)
Bundled Software
ASUS Exclusive Software Armory Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
Part ID: #CAN-01963
Last Updated: 1 month ago
