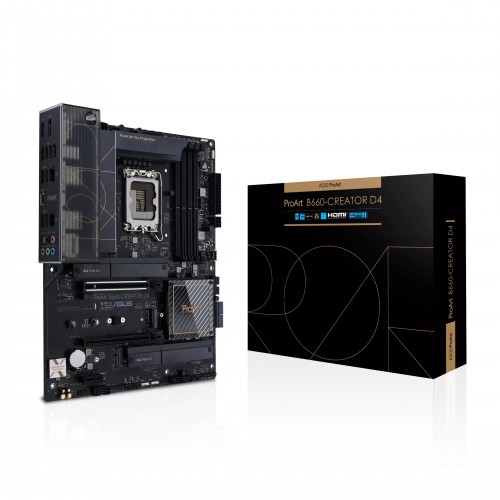

ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard

Status
In Stock
2 stores
Lowest 26,700 BDT
Price Range 26,700 to 27,000 BDT Save 1%
ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard

Product Description

Unlock Your Creativity with the ASUS ProArt B660-CREATOR D4

The ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard is specifically designed for creative professionals and content creators who demand exceptional performance, immersive audio experiences, and reliable connectivity. This feature-packed motherboard unlocks your creative potential, enabling you to focus on what matters most – bringing your vision to life.

Key Features and Benefits

  • Supports 12th generation Intel Core processors, Pentium Gold, and Celeron processors for exceptional performance
  • Realtek 7.1 Surround Sound High Definition Audio CODEC for immersive audio experiences
  • Comprehensive connectivity options, including USB 3.2 Gen 2 Type-C ports, USB 3.2 Gen 1 ports, and USB 2.0 ports
  • Three M.2 slots that support PCIe 4.0 x4 and PCIe 3.0 x4 modes for fast storage performance
  • Supports a maximum memory capacity of 128GB and utilizes DDR4 memory technology

Proprietary Technologies and Performance Highlights

ASUS 5X PROTECTION III for enhanced reliability, ASUS Q-Design elements for easy installation, and an efficient thermal solution with flexible M.2 heatsinks and VRM heatsink design. The motherboard also features Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control.

Advanced Security Management and Connectivity Options

The ASUS ProArt B660-CREATOR D4 motherboard offers advanced security management features, including USB port restriction, software blacklisting, and Windows Registry protection via ASUS Control Center Express. Additionally, it provides comprehensive connectivity options, including 2.5 Gb and 1 Gb onboard Ethernet, a Thunderbolt header, and a USB-C DisplayPort and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+.

Part ID: #CAN-02177 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Nexus Computer ASUS ProArt B660-CREATOR D4 ATX Motherboard
In Stock 26,700 3 hours ago
Buy Now
PC House ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard
In Stock 27,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

BASIC INFORMATION

BIOS 128 Mb
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Basic Information

Chipset Intel B660
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 10 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Expansion Slots

PCI Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headers Bundled Software ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility EPU DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Memory

Slots 4 x DIMM PCI Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot** * Supports Intel Optane Memory H Series on PCH-attached PCIE slot ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
Supported Memory 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory 128GB
Memory DDR4
Storage Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

Graphics

Graphics Graphics 1 x HDMI port (Support 4K@60Hz as specified in HDMI 2.1.) 1 x USB Type-C port supports DisplayPort output (Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.) 1 x DP IN that will have output through USB Type-C port (A DisplayPort to DisplayPort cable is required for the USB Type-C port at the back panel to output DisplayPort signal.)

Connector & Ports

HDMI 1 x HDMI port
Display Port 1 x DisplayPort
USB (s) Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2 Type-C port (shared with DisplayPort graphic output) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN 1 x Realtek 2.5Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard
Wireless M.2 slot only (Key E, PCIe) *Wi-Fi module is sold separately.

WARRANTY INFORMATION

Warranty 3 years
Part ID: #CAN-02177 Last Updated: 1 month ago
