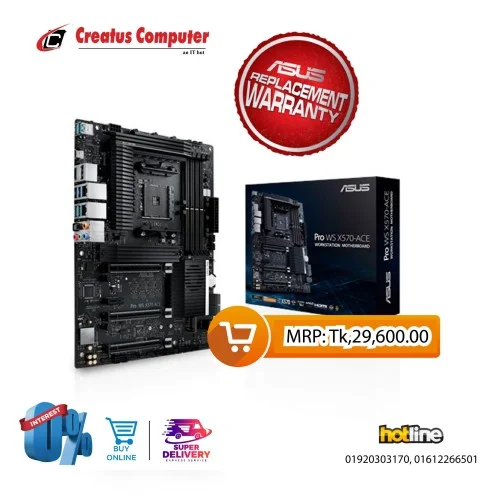

Asus PRO WS X570-ACE AM4 ATX Motherboard

Status
In Stock
2 stores
Lowest 30,000 BDT
Price Range Single price listing
Asus PRO WS X570-ACE AM4 ATX Motherboard

Product Description

Unlock Unmatched Performance with the ASUS PRO WS X570-ACE Motherboard

Designed for professionals and enthusiasts alike, the ASUS PRO WS X570-ACE motherboard offers unparalleled performance, flexibility, and reliability for demanding applications such as content creation, video editing, and gaming. With its robust feature set and cutting-edge technology, this motherboard empowers users to take their systems to the next level.

Key Features and Benefits

  • Supports AMD AM4 Socket 3rd and 2nd Gen Ryzen processors for exceptional performance and power efficiency
  • Equipped with 3rd Gen PCIe 4.0 and 2nd Gen PCIe 3.0 x16 slots for seamless graphics and storage upgrades
  • Features 4 x DIMM DDR4 slots supporting up to 128 GB of dual-channel memory with speeds up to 4400 MHz
  • Includes 1 x HDMI 2.0b and 1 x DisplayPort 1.2 for stunning visual output and connectivity options
  • Boasts 5 x USB 3.2 Gen 2 ports and 4 x USB 2.0 ports for effortless connectivity and expansion

Proprietary Technologies and Enhancements

5-Way Optimization by Dual Intelligent Processors 5 - Perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App for optimized system performance and cooling control. Additionally, this motherboard features ASUS 5X Protection III, including ASUS LANGuard, ASUS Overvoltage Protection, ASUS Stainless-Steel Back I/O, ASUS Enhanced DRAM Overcurrent Protection, and ASUS ESD Guards for unparalleled protection and reliability.

Part ID: #CAN-01961 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Asus PRO WS X570-ACE AM4 ATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now
PC House ASUS PRO WS X570-ACE AM4 ATX MOTHERBOARD
Check Stock 30,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Chipset AMD X570
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Expansion Slots

PCI 3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (x8 mode) 1 x PCIe 4.0 x1
M.2 Socket 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support

Memory

Type Dual Channel Memory Architecture
Slots 4 x DIMM DDR4
Supported Memory 3rd Gen AMD Ryzen Processors 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666(O.C.)/ 2400/ 2133 MHz Un-buffered Memory
Maximum Mamory 128 GB

Graphics

Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors VGA output support : HDMI port Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology

Connector & Ports

HDMI 1x HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
Display Port (s) 1 x DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
USB (s) 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 3 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A, 1 at mid-board) AMD X570 chipset : 5 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, Type-A, 1 x Type-C) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s) Realtek RTL8117 Intel I211-AT ASUS Turbo LAN Utility ASUS LAN Guard
Supported Storage 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support 1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio Realtek S1220A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking - Front panel audio connector (AAFP) Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality Separate layer for left and right track, ensuring both sound deliver equal quality
Internal I/O Ports 1 x PCH_FAN 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x U.2 Connector (support U.2 NVMe device) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Warranty Information

Manufacturing Warranty 3 Years Limited

Others

Special Features 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem： - Improved DDR4 Stability ASUS EPU : - EPU ASUS Exclusive Features : - OptiMem - AI Suite 3 - Ai Charger - ESD Guards - Turbo LAN - Armoury Crate - ASUS EZ Flash 3 - ASUS NODE : hardware control interface ASUS Quiet Thermal Solution : - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM
Part ID: #CAN-01961 Last Updated: 1 month ago
