Product Description
Uncompromising Performance for Business Users

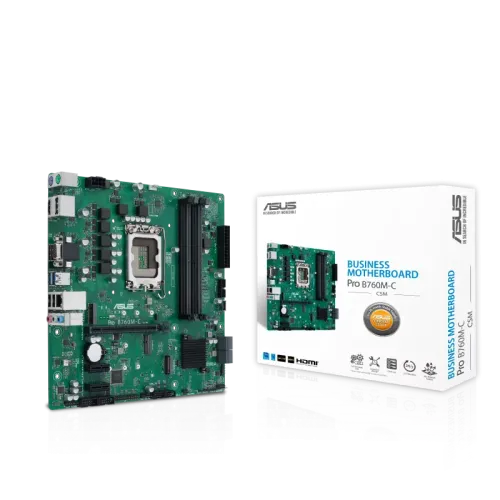

The ASUS PRO B760M-C-CSM Micro-ATX Motherboard is specifically designed for business users who demand reliability, efficiency, and cutting-edge performance in a compact form factor. With its robust feature set and Intel B760 chipset, this motherboard offers the perfect blend of power, connectivity, and manageability.
Key Features and Technical Specifications
Technical Highlights:
- Supports Intel 14th Gen, 13th Gen, and 12th Gen processors, as well as Pentium Gold and Celeron processors
- Up to 192GB DDR5 memory with speeds up to 6200(OC)
- 4 x DIMM slots with dual-channel memory architecture and Intel Extreme Memory Profile (XMP)
- 2 x DisplayPort, 1 x VGA port, and 1 x HDMI port for seamless connectivity
- 1 x Intel 1Gb Ethernet port for network connectivity
- 2 x M.2 slots and 4 x SATA 6Gb/s ports for storage options
ASUS Q-Design and Business-Focused Features
ASUS Q-Design and Business-Focused Features:
The ASUS PRO B760M-C-CSM Micro-ATX Motherboard showcases ASUS Q-Design features, including Q-DIMM, Q-LED Core, and Q-Slot, for easy installation and maintenance. Additionally, it offers business-focused features such as ASUS Self Recovering BIOS, ASUS Event Log, and 24/7 reliability, making it an ideal choice for businesses that require a reliable and efficient computing solution.
Part ID: #CAN-01015
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard
|
In Stock | 16,700 | 4 hours ago | |
|
Creatus Computer
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
|
In Stock | 16,700 | 4 hours ago | |
|
Star Tech
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
|
In Stock | 16,900 | 1 week ago | |
|
Sell Tech
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
|
In Stock | 16,900 | 4 hours ago | |
|
Computer Village
ASUS PRO B760M-C-CSM 12TH AND 13TH Gen ATX Motherboard
|
In Stock | 16,900 | 4 hours ago | |
|
Skyland BD
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
|
In Stock | 16,900 | 4 hours ago | |
|
Global Brand PLC
ASUS Pro B760M-C-CSM 13th Gen mATX Motherboard
|
In Stock | 17,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128Mb Flash ROM
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II
Maximum Memory
Max. 192GB
Graphics
Graphics
2 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
2 x DisplayPort
VGA (s)
1 x VGA port
USB (s)
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module
M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection
Bundled Software
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE)
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO B760M-C-CSM
Supported CPU
14th 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DIMM, Max. 192GB, DDR5 6200(OC)
Graphics Output
2 x DisplayPort, 1 x VGA, 1 x HDMI
Features
1 x Intel 1Gb Ethernet
Part ID: #CAN-01015
Last Updated: 1 month ago
