Product Description
High-Performance Desktop Motherboard for Professionals and Businesses

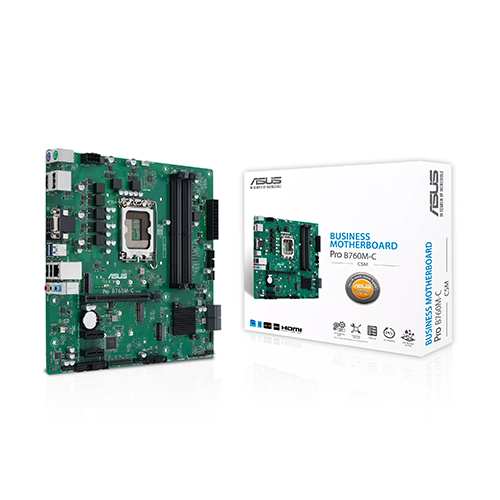

The ASUS Pro B760M-C-CSM DDR5 motherboard is designed for business and professional users who demand high-performance, stability, and expandability in their desktop systems. With its impressive feature set, DDR5 memory support, and robust connectivity options, this motherboard is an excellent choice for building high-performance desktop systems.
Key Features and Benefits- DDR5 Memory Support: Supports up to 192GB of DDR5 memory across four DIMM slots, enabling high-speed data transfer rates and improved overall system performance.
- Expansion Slots: Features one PCIe 4.0/3.0 x16 slot for high-performance graphics cards and two PCIe 3.0 x1 slots for additional expansion cards.
- Storage Options: Supports two M.2 slots (Key M) for fast NVMe SSDs and four SATA 6Gb/s ports for traditional hard drives or SATA SSDs.
- Realtek 7.1 Surround Sound: Provides high-quality audio with support for jack-detection and front panel jack-retasking, and supports up to 24-Bit/192 kHz playback.
- ASUS Exclusive Software: Includes ASUS Control Center Express (ACCE) for efficient IT management, as well as ASUS Self Recovering BIOS and other exclusive features.
The ASUS Pro B760M-C-CSM DDR5 motherboard incorporates several proprietary technologies and features that enhance its performance and usability. These include:
ASUS Q-Design: Simplifies memory and expansion card installation with features like Q-DIMM, Q-LED Core, and Q-Slot.
ASUS Self Recovering BIOS: Enables system recovery in case of failures, ensuring minimal downtime and maximum productivity.
ASUS Control Center Express (ACCE): Provides efficient IT management and monitoring capabilities, making it easier to manage and maintain your system.
Part ID: #CAN-02189
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x ACC Express Activation Key Card 1 x User guide
Audio Feature
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPorts 1 x HDMI® port 1 x VGA port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port
CPU
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Ethernet
1 x Intel® 1Gb Ethernet ASUS LANGuard
Graphic
2 x DisplayPort 1 x VGA port 1 x HDMI® port
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Manageability
WOL by PME, PXE
Memory
4 x DIMM, Max. 192GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II
Operating System
Windows® 11, Windows® 10 64-bit
Software Features
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE)
Special Features
ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Main Features
BIOS
128Mb Flash ROM
Chipset
Intel B760 Chipset
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Physical Specification
Expansion Slots
Intel® 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B760 Chipset 2 x PCIe 3.0 x1 slots
Warranty Information
Warranty
3 Years
