Product Description

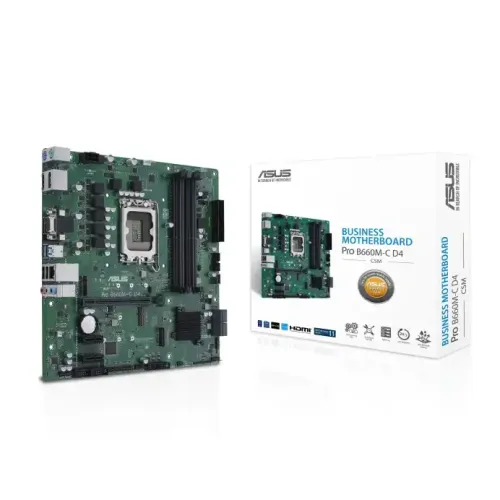

ASUS Pro B660M-C D4-CSM mATX Motherboard
Designed for businesses and organizations requiring reliable and efficient computing solutions, the ASUS Pro B660M-C D4-CSM mATX Motherboard is built to deliver 24/7 stability and reliability, comprehensive system protection, and improved management capabilities.
This enterprise-grade motherboard provides a high-quality, TCO-optimized solution for your business computing needs, backed by ASUS's world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle.
Key Features and Technical Specifications
- Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors
- 4x DDR4 memory slots with a maximum capacity of 128GB
- 2x DisplayPort, 1x D-Sub, and 1x HDMI graphics output
- 1x Intel 1Gb Ethernet LAN port
- Supports up to 36-month product lifecycle and 6-month end-of-life notice
- Includes ASUS Control Center Express server-grade IT management software
Proprietary Technologies and Features
ASUS Corporate Stable Model (CSM) - A commercial program designed to provide stable and reliable motherboards with up to 36-month product lifecycle support and 6-month end-of-life notice.
ASUS Control Center Express - An integrated IT monitoring and management software designed to deploy faster, simplify IT operations, and improve productivity with comprehensive control and user-friendly functions.
ASUS Debug Header - A 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting.
Part ID: #CAN-01013
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
ASUS PRO B660M-C D4-CSM MICRO-ATX 13TH GEN INTEL MOTHERBOARD
|
In Stock | 16,000 | 4 hours ago | |
|
Star Tech
ASUS Pro B660M-C D4-CSM mATX Motherboard
|
In Stock | 16,200 | 1 week ago | |
|
Sell Tech
ASUS Pro B660M-C D4-CSM mATX Motherboard
|
In Stock | 16,200 | 4 hours ago | |
|
Ultra Technology
ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard
|
In Stock | 16,200 | 3 hours ago | |
|
Skyland BD
ASUS Pro B660M-C D4-CSM mATX Motherboard
|
In Stock | 16,200 | 3 hours ago | |
|
PCB Store
ASUS Pro B660M-C D4-CSM LGA1700 mATX Motherboard
|
In Stock | 16,500 | 4 hours ago | |
|
Global Brand PLC
ASUS PRO B660M-C D4-CSM Micro-ATX B660 Business Motherboard
|
In Stock | 16,500 | 4 hours ago | |
|
Nexus Computer
ASUS PRO B660M-C D4-CSM DDR4 Motherboard
|
In Stock | 16,900 | 3 hours ago | |
|
Sell Tech
ASUS Pro B660M-C D4-CSM mATX Motherboard
|
In Stock | 17,100 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B660 Chipset
BIOS
128Mb Flash ROM
Form Factor
microATX 24.4cm x 24.4cm
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
Memory
Type
DDR4
Slots
4 x DIMM slots
Supported Memory
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem
Maximum Memory
128GB
Graphics
Graphics
2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
2 x DisplayPort
D-Sub (s)
1 x D-Sub
USB (s)
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module
M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
Others
Special Features
ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard
Bundled Software
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
Pro B660M-C D4-CSM
Supported CPU
14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)
Supported RAM
4x DDR4, Max 128GB
Graphics Output
2 x DisplayPort, 1 x D-Sub, 1 x HDMI
Features
1 x Intel 1Gb Ethernet
Part ID: #CAN-01013
Last Updated: 1 month ago
