Product Description

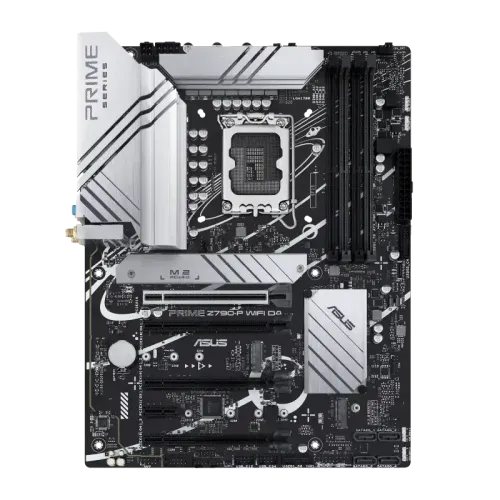

Unlock Unmatched Performance with the ASUS PRIME Z790-P WIFI D4-CSM
Designed for enthusiasts and PC builders, the ASUS PRIME Z790-P WIFI D4-CSM motherboard delivers exceptional performance, robust connectivity, and cutting-edge features to power your next-generation gaming desktop or content creation workstation. With its 14th Gen Intel Core processor support and Intel Z790 chipset, this motherboard is the perfect choice for those seeking unparalleled power and flexibility.
Key Features and Benefits
- Supports 14th Gen Intel Core processors and up to 128GB of DDR4 memory for seamless multitasking and demanding applications
- 3 x M.2 slots and 4 x SATA 6Gb/s ports for extensive storage options and fast data transfer
- PCIe 5.0 x16 slot for resource-intensive graphics cards and three PCIe 4.0 x16 slots for utility cards
- Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for seamless wireless connectivity
- 14+1 DrMOS, ProCool sockets, alloy chokes, and robust capacitors for a consistent power delivery
Advanced Technologies and Cooling
The ASUS PRIME Z790-P WIFI D4-CSM motherboard boasts a range of innovative technologies and features designed to optimize performance and stability. The motherboard's advanced cooling system includes a large VRM heatsink, integrated M.2 heatsinks, and backplates for enhanced thermal performance and throttling prevention. Additionally, the motherboard features Fan Xpert 4 software and hybrid fan headers for customizable cooling control.
Part ID: #CAN-01361
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASUS PRIME Z790-P WIFI D4-CSM ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
PC House
ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard
|
In Stock | 32,800 | 4 hours ago | |
|
Nexus Computer
Asus PRIME Z790-P WIFI D4-CSM 13th & 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z790 Chipset
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME Z790-P WIFI D4-CSM
Supported CPU
14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DIMM, Max. 128GB, DDR4
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
3 x M.2 slots, Wi-Fi 6, Bluetooth v5.2
Part ID: #CAN-01361
Last Updated: 1 month ago
