Product Description
Engineered by ASUS, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01200
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech

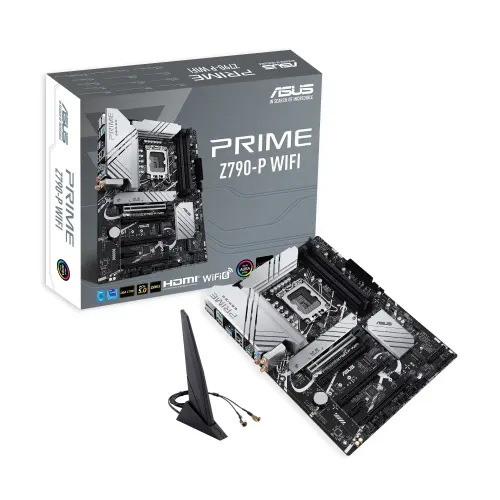

ASUS PRIME Z790-P WIFI ATX Motherboard
|
In Stock | Call for Price | 2 hours ago | |
|
Binary Logic
ASUS PRIME Z790-P WIFI 13th & 12th Gen ATX Motherboard
|
In Stock | 34,000 | 2 hours ago | |
|
Nexus Computer
Asus PRIME Z790-P WIFI 13th & 12th Gen ATX Motherboard
|
In Stock | 36,600 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z790 Chipset
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio
3 x audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME Z790-P WIFI
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DIMM, Max. 128GB, DDR5 7200+(OC)
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
Realtek 2.5Gb Ethernet and Wi-Fi 6
Part ID: #CAN-01200
Last Updated: 2 days ago
The ASUS PRIME Z790-P WIFI features LGA 1700 socket and the Z790 chipset. It supports Intel 14th gen, 13th Gen Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It comes with four DDR5 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. This motherboard is equipped with four SATA III and three M.2 storage interfaces are available so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slot support a wide range of utility cards. ASUS PRIME Z790-P WIFI offers a range of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 back panel ports and internal headers that provide you with plenty of support for peripherals from low-powered equipment like mice, keyboards, and controllers to resource-demanding devices like external drives and storage arrays. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports deliver up to 5 and 10 Gb/s data transfer speeds, respectively, suitable for webcams, mics, and external storage drives. USB-C 3.2 Gen 2x2 port gives you up to 20 Gb/s data transfer speed for resource-demanding devices such as storage arrays and audio interfaces. You can also use the PRIME's integrated Bluetooth 5.2 technology for a cable-free experience for wireless devices. Connect to your wireless network with Wi-Fi 6 (802.11ax) or use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection. The ASUS PRIME Z790-P WIFI 13th Gen ATX Motherboard comes with 3 years of warranty.
