Product Description

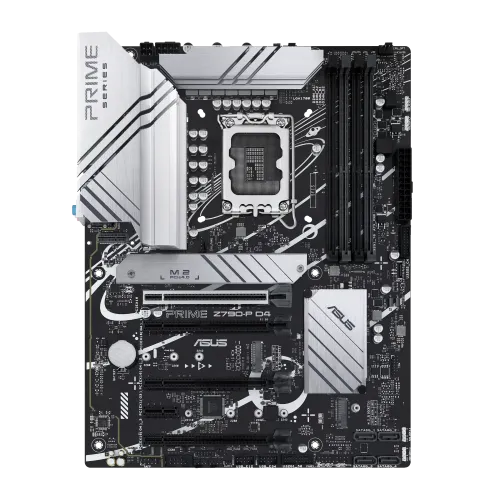

Power Your Next-Gen Builds with the ASUS PRIME Z790-P D4-CSM ATX Motherboard
Designed for enthusiasts and PC builders looking to take their gaming and content creation to the next level, the ASUS PRIME Z790-P D4-CSM ATX Motherboard is a powerhouse of performance, featuring the latest Intel Z790 chipset and support for 14th, 13th Gen, and 12th Gen Intel Core Processors. With its robust feature set and premium build quality, this motherboard is the perfect choice for anyone seeking a high-performance foundation for their next PC build.
Key Features and Benefits
- Supports 14th, 13th Gen, and 12th Gen Intel Core Processors for unparalleled performance and power efficiency
- Four DDR4 Dual-Channel RAM slots with support for up to 128GB of memory at speeds of up to 5333(OC)
- 1 x PCIe 5.0 x16 slot and 3 x PCIe 4.0 x16 slots (in x4 mode) for resource-demanding graphics cards and utility cards
- Realtek 2.5Gb Ethernet for fast and reliable wired networking
- ASUS 5X PROTECTION III and DIGI+ VRM for enhanced power delivery and stability
Exclusive ASUS Technologies
Unlock Unparalleled Performance with ASUS Exclusive Technologies
The ASUS PRIME Z790-P D4-CSM ATX Motherboard features a range of proprietary technologies designed to deliver unparalleled performance, stability, and convenience. These include:
- ASUS 5X PROTECTION III for enhanced power delivery and stability
- DIGI+ VRM for digital power design with DrMOS
- ASUS Q-Design for easy installation and maintenance
- ASUS Thermal Solution for effective heat dissipation and cooling
- ASUS EZ DIY for easy BIOS updates and system configuration
Part ID: #CAN-01353
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASUS PRIME Z790-P D4-CSM ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
TechLand BD
ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD
|
In Stock | 29,800 | 5 hours ago | |
|
Nexus Computer
ASUS PRIME Z790-P D4-CSM DDR4 Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z790 Chipset
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio
3 x audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME Z790-P D4-CSM
Supported CPU
14th 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DIMM, Max. 128GB, DDR4 5333(OC)
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
Realtek 2.5Gb Ethernet
Part ID: #CAN-01353
Last Updated: 1 month ago
