Product Description

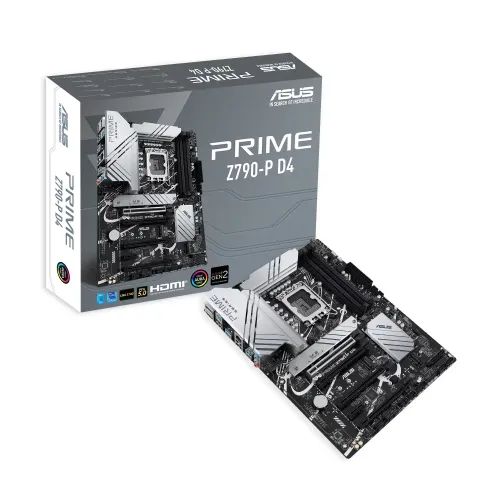

Unlock Unmatched Performance with the ASUS PRIME Z790-P D4 ATX Motherboard
Designed for enthusiasts and power users, the ASUS PRIME Z790-P D4 is a cutting-edge ATX motherboard engineered to deliver exceptional performance, versatility, and reliability for demanding applications such as gaming, content creation, and overclocking.
Key Features and Benefits
- Unbeatable Performance: Supports Intel 14th Gen, 13th Gen, and 12th Gen processors, with up to 128GB of DDR4 memory at 5333(OC) for enhanced multitasking and complex tasks.
- Robust Connectivity: Features a single PCIe 5.0 x16 slot, three PCIe 4.0 x16 slots in x4 mode, and one PCIe 3.0 x1 slot for a wide range of utility cards.
- Advanced Storage: Equipped with four SATA III and three M.2 storage interfaces for a large library of storage drives.
- Superior Networking: Includes a built-in 2.5 Gigabit Ethernet port for a reliable wired connection.
- Enhanced Audio: Boasts Realtek 7.1 Surround Sound High Definition Audio CODEC with premium capacitors and dedicated audio PCB layers.
ASUS Proprietary Technologies
ASUS 5X PROTECTION III: The PRIME Z790-P D4 features ASUS 5X PROTECTION III, a comprehensive set of power delivery and protection technologies that ensure stable power throughout the entire motherboard. These include DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O.
ASUS Q-Design: This motherboard incorporates ASUS Q-Design, a sleek and intuitive design language that simplifies the user experience. Q-DIMM, Q-Slot, and Q-LED Core are just a few of the features that make it easy to install and manage hardware components.
ASUS Thermal Solution: The PRIME Z790-P D4 boasts a robust thermal solution, with flexible M.2 heatsinks and VRM heatsink design that keep critical components at optimal temperatures.
Part ID: #CAN-01199
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASUS PRIME Z790-P D4 ATX Motherboard
|
In Stock | Call for Price | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z790 Chipset
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio
3 x audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME Z790-P D4
Supported CPU
14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DIMM, Max. 128GB, DDR4 5333(OC)
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
Realtek 2.5Gb Ethernet
