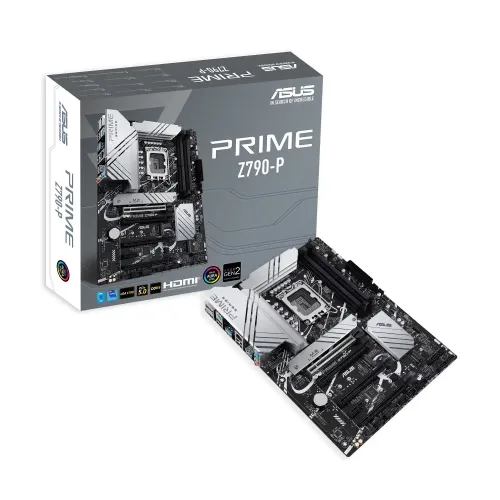

ASUS PRIME Z790-P ATX Motherboard

Status
In Stock
1 stores
Lowest Out of Stock
Price Range Single price listing
ASUS PRIME Z790-P ATX Motherboard

Product Description

Unlock Your PC's Potential with the ASUS PRIME Z790-P ATX Motherboard

The ASUS PRIME Z790-P is designed for gamers, content creators, and PC enthusiasts who demand exceptional performance, reliability, and innovative features. This premium motherboard is built to unleash the full potential of Intel 13th Gen Core Processors, 12th Gen Intel Core, Pentium Gold, and Celeron Processors, elevating your computing experience to new heights.

Key Features and Benefits

The ASUS PRIME Z790-P boasts an impressive array of features that cater to diverse needs and preferences:

  • Supports Intel 14th Gen, 13th Gen, and 12th Gen Processors, ensuring compatibility with the latest CPU releases
  • 4 x DIMM DDR5 slots with a maximum capacity of 128GB, enabling seamless multitasking and complex rendering
  • Realtek 2.5Gb Ethernet for fast and reliable wired connectivity
  • 1 x PCIe 5.0 x16 slot and 3 x PCIe 4.0 x16 slots (in x4 mode) for demanding graphics cards and utility cards
  • 4 x SATA III and 3 x M.2 storage interfaces for ample storage and flexibility
ASUS Exclusive Technologies

The ASUS PRIME Z790-P incorporates several proprietary technologies that enhance its performance, efficiency, and user experience:

ASUS 5X PROTECTION III, a comprehensive set of safeguards that protect your system from damage caused by power surges, overvoltage, and other threats. This includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, and more.

ASUS Q-Design features, such as Q-DIMM, Q-Slot, and Q-LED Core, ensure easy installation, improved airflow, and streamlined cable management.

ASUS Thermal Solution includes a flexible M.2 heatsink and VRM heatsink design, which effectively dissipates heat and maintains optimal temperatures.

Part ID: #CAN-01198 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech ASUS PRIME Z790-P ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory 128GB

Graphics

Graphics 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio 3 x audio jacks
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model PRIME Z790-P
Supported CPU 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM 4 x DIMM, Max. 128GB, DDR5 7200+(OC)
Graphics Output 1 x DisplayPort, 1 x HDMI
Features Realtek 2.5Gb Ethernet
