Product Description

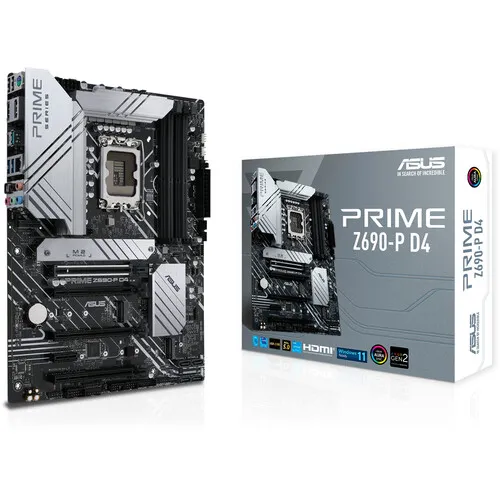

Engineered by ASUS, this motherboard is designed for **LGA1700** socket processors, built on the **Z690** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **25,900 ৳**, with active inventory listings tracked from Binary Logic, Creatus Computer, Sell Tech and other retailers.
Part ID: #CAN-01857
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus Prime Z690-P D4 12th Gen ATX Motherboard
|
In Stock | 25,900 | 2 hours ago | |
|
Nexus Computer
ASUS PRIME Z690-P D4 ATX Motherboard
|
In Stock | 26,000 | 2 hours ago | |
|
Sell Tech
Asus Prime Z690-P D4 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago | |
|
Binary Logic
ASUS PRIME Z690-P D4 ATX 12th Gen Motherboard
|
Check Stock | 26,000 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
Model
PRIME Z690-P D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core&trade Processors & 12th Gen Intel® Core&trade, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z690 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC) /4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC) /3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the memory support list.
Graphics
1 x DisplayPort 1 x HDMI® Port *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (supports x4 mode) 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table in the support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*  Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, and SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*  Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, and SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
 V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
USB
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)   Front USB (Total 9 ports)  1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin Panel header 1 x Thunderbolt&trade header
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB header - Addressable Gen 2 headers
Software Features
ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility   TurboV EVO   EPU   DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User guide
Operating
Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX 30.5cm x 23.4cm
Part ID: #CAN-01857
Last Updated: 2 days ago
Asus Prime Z690-P D4 12th Gen ATX Motherboard The Asus Prime Z690-P D4 Motherboard features Intel LGA1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking The Asus Prime Z690-P D4 is supported with DDR4 memory, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. The Asus Prime Z690-P D4 offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The Asus Prime Z690-P D4 comes with 3 years of warranty.
