Product Description

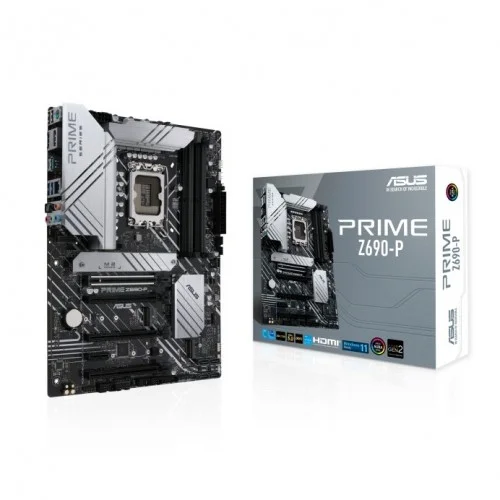

Unleash Your Gaming Potential with the ASUS Prime Z690-P Motherboard
The ASUS Prime Z690-P Motherboard is designed for PC enthusiasts and gamers seeking high-performance computing. With its cutting-edge features and robust design, this motherboard is engineered to deliver exceptional performance, stability, and overclocking capabilities.
Key Features and Benefits
Here are some of the key features and benefits of the ASUS Prime Z690-P Motherboard:
- 12th Gen Intel Core Processor Support: Ready for Intel LGA1700 socket, 12th Gen Intel Core, Pentium Gold, and Celeron Processors
- Enhanced Power Solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery
- DDR5 Memory Support: Supports up to 128GB DDR5 memory with ASUS OptiMem II technology for improved memory overclocking
- PCIe 5.0 and 2.5Gb Ethernet: Offers blazing-fast storage and networking speeds
- Thermal Solution: Features large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4 for optimal cooling
ASUS Proprietary Technologies
The ASUS Prime Z690-P Motherboard features several proprietary technologies that set it apart from the competition:
ASUS 5-Way Optimization: Dynamically optimizes essential system aspects for improved performance and stability
ASUS OptiMem II: Carefully routes traces and vias to preserve signal integrity and improve memory overclocking
ASUS AURA Sync: Synchronizes RGB lighting effects across compatible components and peripherals
ASUS Q-Design: Offers a sleek and futuristic build with a black and white finish, space-shuttle-inspired design elements, and metallic nameplate
Part ID: #CAN-01958
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus Prime Z690-P 12th Gen ATX Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
PC House
Asus Prime Z690-P 12th Gen ATX Motherboard
|
In Stock | 26,000 | 4 hours ago | |
|
Sell Tech
Asus Prime Z690-P 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
Nexus Computer
ASUS PRIME Z690-P ATX Motherboard
|
Check Stock | 26,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Z690
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX 30.5cm x 23.4cm
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playbackAudio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s)Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
M.2 Socket
Supports 3 x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
V-M.2 slot only (Key E, CNVi & PCIe) * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
Supported Storage
Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Audio
5 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-5pin System Panel header 1 x Thunderbolt header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty
3 years
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Bundled Software
ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Part ID: #CAN-01958
Last Updated: 1 month ago
