Product Description

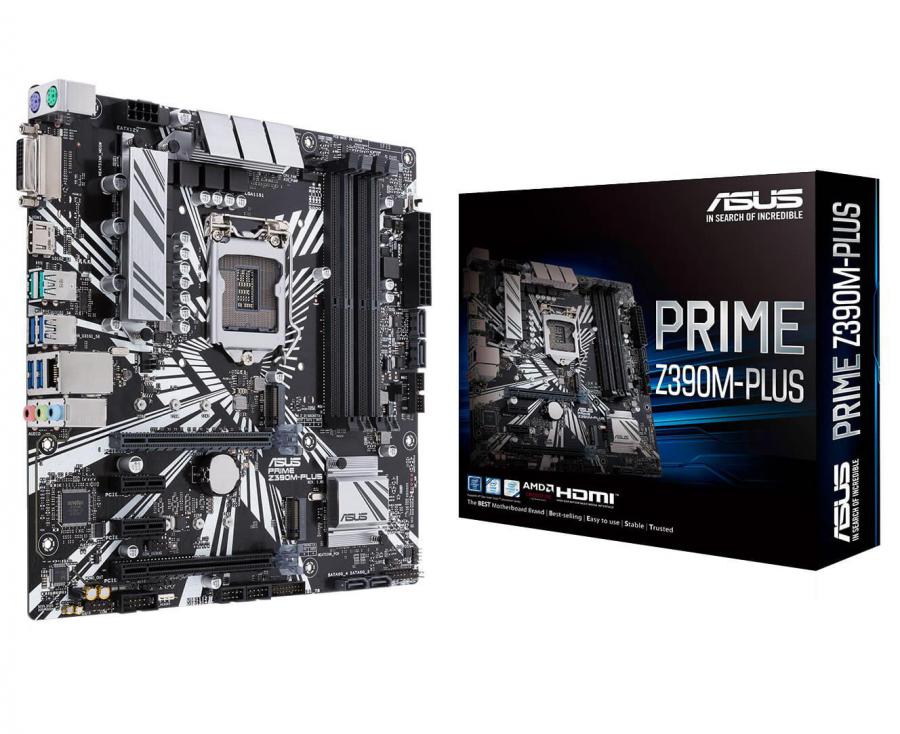

Engineered by ASUS, this motherboard is designed for **LGA1151** socket processors and featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **15,000 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01865
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
CPU
Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Refer to www.asus.com for CPU support list
Chipset
Intel® Z390
Memory
Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron®Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.Refer to www.asus.com for CPU support list
Graphic
4 x DIMM, Max. 64GB, DDR4 4266(O.C.) / 4133(O.C.) / 4000 (O.C.) / 3866(O.C.) / 733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.)/ 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.)/ 2800(O.C.) / 2666/2400/ 2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Refer to www.asus. com for the Memory QVL (Qualified Vendors Lists) The maximum memory frequency supported varies by processor
Multi-GPU Support
Supports AMD CrossFireX™ Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)1 x PCIe 3.0/2.0 x16 (max at x4 mode)2 x PCIe 3.0/2.0 x1
Storage
Intel® Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/ 2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/ 2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), graySupport Raid 0, 1, 5, 10Intel® Optane™ Memory ReadyIntel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
LAN
Intel® I219V, 1 x Gigabit LAN Controller (s)Anti-surge LANGuard
Audio
Realtek® ALC887 8-Channel High Definition Audio CODECSupports : Jack-detection, Front Panel Jack-retasking Audio Feature : LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports
Intel® Z390 Chipset :2 x USB 3.1 Gen 2 port(s)Intel® Z390 Chipset :8 x USB 3.1 Gen 1 port(s) (4 at mid-board)Intel® Z390 Chipset : 4 x USB 2.0 port (s) (4 at mid-board)
Special Features
ASUS 5X Protection III :ASUS SafeSlot Core: Fortified PCIe Slot prevents damageASUS LAN Guard: Protects against LAN surges, lightning strikes and static- electricity discharges! ASUS Overvoltage Protection: World-class circuit- protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion- resistance for greater durability!ASUS Optimem II：Improved DDR4 Stability ASUS EPU :EPUASUS Exclusive Features : MemOK! IIAI Suite 3Ai ChargerASUS Quiet Thermal Solution :Stylish Fanless Design Heat-sink solution & MOS HeatsinkASUS Fan Xpert 4ASUS EZ DIY : ASUS O.C. TunerASUS CrashFree BIOS 3ASUS EZ Flash 3ASUS UEFI BIOS EZ ModeASUS Q-Design :ASUS Q-SlotASUS Q-DIMMM.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 Type-A 3 x Audio jack(s)
Internal I/O Ports
2 x USB 3.1 Gen 1(up to 5Gbps) connector (s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/ 2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header
Accessories
User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SCD (by region)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
Operating System
Windows® 10 64-bit
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Part ID: #CAN-01865
Last Updated: 2 days ago
ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard ASUS PRIME Z390M-PLUS 9th & 8th gen gaming motherboard compatible with Intel (Socket 1151) i3, i5, i7 & i9 processor. This ultrafast dual channel max DDR4 4266 MHz supported maximum 64GB memory and it has the capability of fast dual M.2 Socket 3, SATA 6Gb/s port and SB 3.1 Gen 2 interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 30 Hz for HDMI and 1920 x 1200 @ 60 Hz for DVI-D slots. This AMD CrossFireX™ Technology supported board hasASUS Quiet Thermal Solution and OptiMem II. Specifications: Basic Information Supported CPU Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 Chipset Intel® Z390 BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Expansion Slots PCI 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 M.2 Socket 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) Memory Type 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Slots Dual Channel Memory Architecture 4 x DIMM Supported Memory Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Maximum Mamory 64GB Graphics Graphics Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Connector & Ports HDMI 1 x HDMI USB (s) Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board) LAN Port (s) Intel® I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard Supported Storage Intel® Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Internal I/O Ports 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header D-Sub (s) 1 X DVI-D Warranty Information Manufacturing Warranty 3 Years Limited ..
