Product Description
Unlock Unparalleled Performance and Versatility

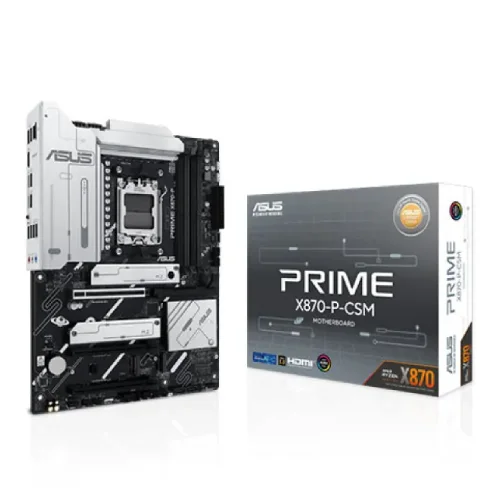

The Asus PRIME X870-P-CSM AM5 ATX Motherboard is designed to satisfy the demands of both professional and personal computing, providing an ideal blend of performance, dependability, and usability. Whether you're a content creator, gamer, or entrepreneur, this motherboard is the perfect foundation for your high-performance system.
Key Features and Technical Specifications
Technical Highlights:
- Supports AMD Ryzen 9000, 8000, and 7000 series CPUs for AM5 socket
- 4 x DIMM slots with DDR5 memory support up to 192GB and 8000+(OC)
- Dual USB4 ports with 40Gbps data transfer speeds
- Realtek 2.5Gb Ethernet and Realtek 7.1 Surround Sound High Definition Audio CODEC
- Four M.2 slots and two SATA 6Gb/s ports for flexible storage options
ASUS Exclusive Technologies and Features
Unlock the Power of ASUS Technologies:
The Asus PRIME X870-P-CSM motherboard features a range of innovative technologies designed to enhance performance, stability, and usability. These include:
- ASUS 5X PROTECTION III with DIGI+ VRM, LANGuard, and SafeSlot for robust power delivery and protection
- ASUS Q-Design with M.2 Q-Latch, PCIe Slot Q-Release, and Q-Antenna for easy installation and improved connectivity
- ASUS Thermal Solution with flexible M.2 heatsink and VRM heatsink design for efficient cooling
- ASUS EZ DIY with BIOS FlashBack, BIOS FlashBack LED, and ProCool for simplified building and upgrading
Part ID: #CAN-01141
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus PRIME X870-P-CSM AM5 ATX Motherboard
|
In Stock | 40,999 | 4 hours ago | |
|
TechLand BD
ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard
|
In Stock | 41,000 | 4 hours ago | |
|
Ultra Technology
ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard
|
In Stock | 41,400 | 4 hours ago | |
|
Skyland BD
Asus PRIME X870-P-CSM AM5 ATX Motherboard
|
In Stock | 41,700 | 3 hours ago | |
|
Star Tech
Asus PRIME X870-P-CSM AM5 ATX Motherboard
|
In Stock | 42,200 | 1 week ago | |
|
Global Brand PLC
ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard
|
In Stock | 42,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOSc
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
M.2 Socket
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 3 x PCIe 4.0 x16 slots (support x1 mode)*** ** Specifications vary by CPU types. *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
192GBB
Graphics
Graphics
1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1x HDMI 2.1
USB (s)
2 x USB4 (40Gbps) ports support USB Type-C display outputs** Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Supported Storage
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** 2 x SATA 6Gb/s ports**** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. **** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
RAID
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRIME X870-P-CSM
Supported CPU
Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
Supported Memory
4 x DIMM, Max. 192GB, DDR5 Up to 8000+(OC)
Graphics Output
1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
Features
Realtek 2.5Gb Ethernet, Realtek 7.1 Surround Sound
