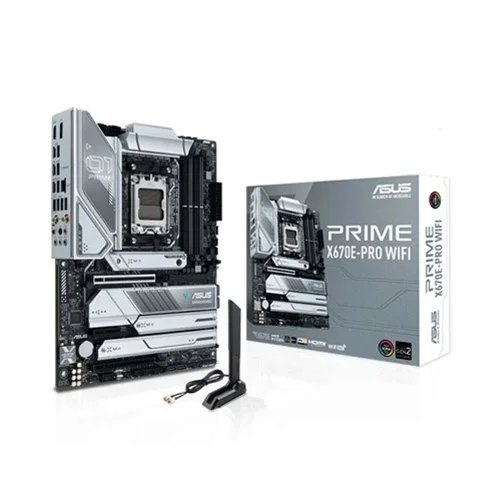

Asus PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard

Status
In Stock
2 stores
Lowest 42,580 BDT
Price Range Single price listing
Asus PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard

Product Description

Unlock Unparalleled Performance with the ASUS PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard

The ASUS PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard is designed for gaming enthusiasts, content creators, and professionals who demand exceptional performance, reliability, and durability. This high-end motherboard delivers a wealth of features, connectivity options, and advanced technologies to create an unparalleled computing experience.

Key Features and Benefits
  • Supports the latest AMD Ryzen 7000 Series Desktop Processors with the AMD Socket AM5
  • Four DIMM slots with a maximum memory capacity of 192GB, supporting DDR5 memory speeds up to 8000+(OC) MHz
  • Comprehensive connectivity options, including 10 rear USB ports, 1x Realtek 2.5Gb Ethernet, and Wi-Fi 6E support
  • Robust storage capabilities, featuring four M.2 slots and four SATA 6Gb/s ports with RAID support
  • Exceptional audio quality, powered by the Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  • Multiple expansion slots for multiple GPU setups and other expansion cards
Advanced Technologies and Proprietary Features

The ASUS PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard features a range of advanced technologies and proprietary features that enhance its performance, reliability, and user experience. Some of these include:

  • ASUS 5X PROTECTION III for digital power design, ESD Guards, LANGuard, Overvoltage Protection, and Safeslot Core+
  • ASUS Q-Design for M.2 Q-Latch, PCIe Slot Q-Release, Q-Connector, Q-DIMM, and Q-LED
  • ASUS Thermal Solution for M.2 heatsink and VRM heatsink design
  • ASUS EZ DIY features, including BIOS FlashBack, Clear CMOS button, ProCool, Pre-mounted I/O shield, and SafeSlot
Part ID: #CAN-01955 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Asus PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard
In Stock Call for Price 5 hours ago
Buy Now
Computer Village Asus PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard
In Stock 42,580 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset AMD X670
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit

Expansion Slots

PCI AMD Ryzen™ 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II
Maximum Memory 192GB

Graphics

Graphics 1 x DisplayPort 1 x HDMI port

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band
Supported Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization - TPU - DIGI+ VRM - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) DTS:X Ultra MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey

Warranty Information

Warranty 3 Years
Part ID: #CAN-01955 Last Updated: 1 month ago
