Product Description

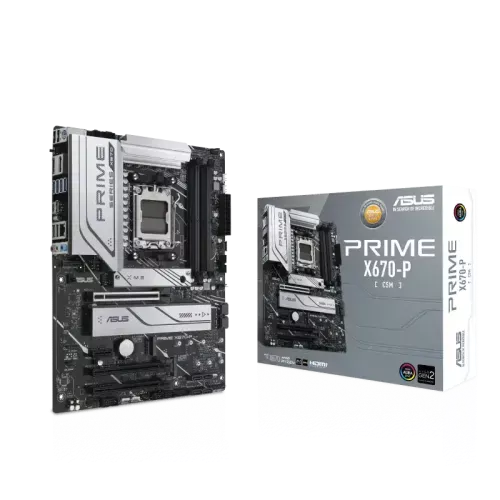

Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard
Unlock Exceptional Performance with the Asus PRIME X670-P-CSM
Designed to maximize the performance of AMD Ryzen 7000-series CPUs, the Asus PRIME X670-P-CSM motherboard is perfect for PC enthusiasts and DIY builders seeking a robust power design, comprehensive cooling solutions, and intelligent tuning options. With its comprehensive feature set and intuitive software, this motherboard offers a variety of performance optimizations to take your system to the next level.
Key Features and Benefits:
- Supports AMD Ryzen 7000 Series Desktop Processors with up to 16 "Zen 4" cores and 32 threads
- PCIe 4.0 x16 slot supports x16 mode and two additional PCIe 4.0 x16 slots support x4 mode
- Six high-quality audio jacks with Realtek 7.1 Surround Sound High Definition Audio CODEC
- Three M.2 slots support PCIe 5.0 x4 mode and six SATA 6Gb/s ports for storage options
- Supports DDR5 memory speeds and AMD EXPO technology for overclocking
Asus Proprietary Technologies:
Asus 5X PROTECTION III and DIGI+ VRM: The Asus PRIME X670-P-CSM motherboard features Asus 5X PROTECTION III, which provides comprehensive protection against power surges and other electrical disturbances. DIGI+ VRM, a digital power design with DrMOS, ensures stable and efficient power delivery to the CPU.
OptiMem II and Aura Sync: With OptiMem II, the motherboard optimizes memory performance and stability. Aura Sync enables synchronized RGB lighting effects across compatible components, creating a visually stunning system.
Part ID: #CAN-02176
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
ASUS PRIME X670-P-CSM DDR5 Motherboard
|
In Stock | 39,200 | 4 hours ago | |
|
Computer Village
ASUS PRIME X670-P-CSM AMD AM5 ATX MOTHERBOARD
|
In Stock | 39,500 | 5 hours ago | |
|
PC House
Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard
|
In Stock | 39,500 | 5 hours ago |
Historical Pricing Trend
Product Specifications
BASIC INFORMATION
Supported CPU
AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Basic Information
Chipset
AMD X670
Audio
3 x Audio jacks Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
M.2 Socket
Total supports 3 x M.2 slots
Memory
Memory Type
DDR5
Slots
4 x DIMM
Supported Memory
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1x HDMI
Display Port
1x DisplayPort
USB (s)
Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN
1 x Intel 2.5Gb Ethernet
RAID
AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Supported Storage
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports
Internal I/O Ports
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port
Others
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers
WARRANTY INFORMATION
Warranty
3 Years
Part ID: #CAN-02176
Last Updated: 1 month ago
