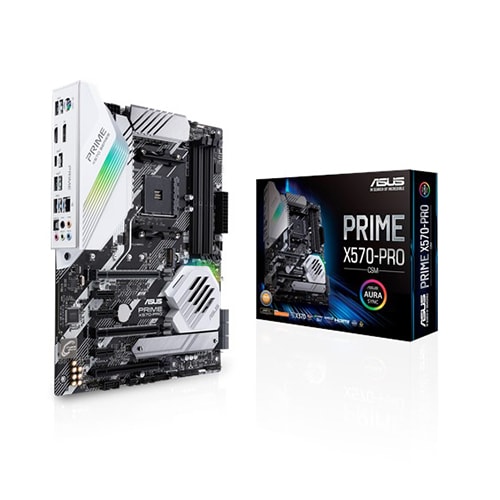

ASUS PRIME X570-PRO/CSM PCIE 4.0 AMD MOTHERBOARD

Status
In Stock
3 stores
Lowest 28,500 BDT
Price Range Single price listing
ASUS PRIME X570-PRO/CSM PCIE 4.0 AMD MOTHERBOARD

Product Description

Unlock the Full Potential of Your Ryzen Processor

Designed for professionals and enthusiasts who demand exceptional performance, the ASUS PRIME X570-PRO/CSM motherboard is the perfect choice for those who want to harness the power of their Ryzen processor. With its cutting-edge features and robust design, this motherboard provides a seamless computing experience and unlocks the full potential of your system.

Key Features and Benefits

  • Supports 3rd and 2nd Gen AMD Ryzen processors with AM4 socket
  • PCIe 4.0 technology for faster data transfer and improved performance
  • Realtek S1220A 8-Channel High Definition Audio CODEC for immersive audio experience
  • 5-Way Optimization for one-click system-wide tuning and intelligent cooling
  • Comprehensive cooling options with Fan Xpert 4 and dual pump headers

Advanced Technologies and Features

ASUS Corporate Stable Model (CSM)

The ASUS PRIME X570-PRO/CSM motherboard is part of the ASUS Corporate Stable Model (CSM) program, which offers up to 36-month product lifecycle support and 6-month end-of-life notice for your organization. This program also includes ASUS Control Center Express, a centralized server-grade management software that simplifies IT operations and improves efficiency.

Part ID: #CAN-02181 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard
In Stock Call for Price 4 hours ago
Buy Now
PC House ASUS PRIME X570-PRO/CSM PCIE 4.0 AMD MOTHERBOARD
In Stock 28,500 1 month ago
Buy Now
Nexus Computer ASUS PRIME X570-PRO/CSM Socket AM4 ATX AMD Motherboard
Check Stock 28,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Chipset AMD X570
Audio Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) - Supports up to 32-Bit/192kHz playback * Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - EMI protection cover to prevent electrical noise to affect the amplifier quality * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

BASIC INFORMATION

BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Memory

Slots 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1
Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10

Graphics

Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Connector & Ports

LAN Intel® I211-AT ASUS LAN Guard
Internal I/O Ports 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x Water Pump header (4-pin) 1 x T_Sensor Connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
USB Port 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)

WARRANTY INFORMATION

Warranty 03 Years
Part ID: #CAN-02181 Last Updated: 1 month ago
