Product Description

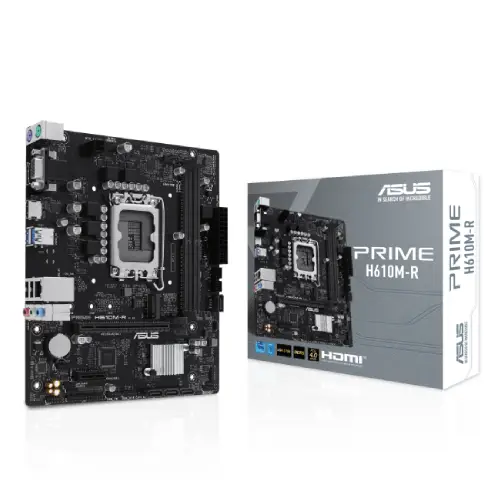

Upgrade Your PC with the ASUS PRIME H610M-R Motherboard
Designed for enthusiasts and power users, the ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard is a compact powerhouse that offers exceptional performance, versatility, and reliability for a wide range of computer tasks. With its cutting-edge Intel H610 chipset and support for 12th, 13th, and 14th Gen processors, this motherboard is perfect for building high-performance gaming PCs, content creation workstations, and other demanding applications.
Key Features and Benefits
Key Highlights:
- Supports 12th, 13th, and 14th Gen Intel Core Processors with up to 65W TDP
- DDR5 memory compatibility with dual DIMM slots, supporting up to 96GB of RAM
- PCIe 4.0 x16 slot for high-speed graphics and an extra PCIe 3.0 x1 slot for added flexibility
- Multiple display outputs, including HDMI, DisplayPort, and VGA
- Integrated Realtek 1Gb Ethernet and a variety of USB 3.2 Gen 1 and USB 2.0 connectors
ASUS Proprietary Technologies
Enhanced Performance and Reliability:
The ASUS PRIME H610M-R Motherboard features a range of proprietary technologies that enhance its performance and reliability. The motherboard's aluminum heatsink architecture provides remarkable stability and longevity, while the ASUS 5X Protection III suite ensures enhanced durability with DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O. Additionally, the motherboard's intuitive UEFI BIOS caters to both novices and seasoned enthusiasts, making it easy to customize and optimize system settings.
Part ID: #CAN-00967
Last Updated: 5 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
|
In Stock | 10,900 | 3 hours ago | |
|
TechLand BD
Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard
|
In Stock | 10,900 | 3 hours ago | |
|
Sell Tech
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
|
In Stock | 10,900 | 3 hours ago | |
|
Netstar
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
|
In Stock | 10,999 | 3 hours ago | |
|
Skyland BD
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
|
In Stock | 11,000 | 2 hours ago | |
|
Creatus Computer
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
|
In Stock | 11,050 | 3 hours ago | |
|
Ultra Technology
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
|
In Stock | 11,200 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Chipset
Intel H610 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Audio
3 x Audio jacks
Expansion Slots
PCI
Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Memory
Type
DDR5
Slots
2 x DIMM
Supported Memory
DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Maximum Memory
Max. 96GB
Graphics
Graphics
1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types.
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x Display port
VGA (s)
1 x VGA
USB (s)
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet
Supported Storage
1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports
Audio
ealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports
Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design
Bundled Software
ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years Warranty
Key Features
Model
PRIME H610M-R
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
2 x DIMM, Max. 96GB, DDR5 5600
Graphics Output
1x HDMI, 1x VGA, 1x DP
Features
1x M.2 slot, 1x Realtek 1Gb Ethernet
Part ID: #CAN-00967
Last Updated: 5 hours ago
