Product Description

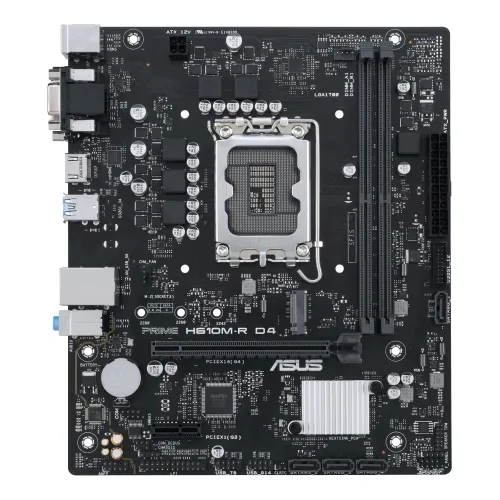

Upgrade Your Gaming and Productivity Builds with ASUS PRIME H610M-R D4
The ASUS PRIME H610M-R D4 motherboard is a reliable and cost-effective solution for entry-level gaming, office, and productivity builds. It delivers stable performance, compact design, and versatile connectivity options for modern computing needs.
Key Features and Benefits
Here are some of the key features and benefits of the ASUS PRIME H610M-R D4 motherboard:
- Support for Intel Core 12th, 13th, and 14th Gen Processors: The motherboard is compatible with Intel Core 12th, 13th, and 14th Gen CPUs, making it an ideal choice for gaming and productivity builds.
- Dual DDR4 DIMM Slots: The motherboard supports up to 64GB of memory at speeds up to 3200MHz, ensuring smooth multitasking and reliable performance.
- PCIe 4.0 Expansion: The motherboard features a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for expansion cards, providing flexibility and performance.
- Realtek 1Gb Ethernet and USB Connectivity: The motherboard offers stable networking and multiple USB 3.2 Gen 1 and USB 2.0 ports for peripherals.
- ASUS 5X PROTECTION III: The motherboard is equipped with ASUS 5X PROTECTION III, ensuring long-term durability and reliability with features like SafeSlot Core, LANGuard, and overvoltage protection.
ASUS Proprietary Technologies
The ASUS PRIME H610M-R D4 motherboard features ASUS proprietary technologies that enhance performance and durability:
- ASUS 5X PROTECTION III: A comprehensive protection system that includes SafeSlot Core, LANGuard, stainless-steel back I/O, and overvoltage protection.
- Q-Design: A design philosophy that prioritizes ease of use and DIY-friendliness with features like Q-DIMM, Q-Slot, and Q-LED Core.
- AI Suite 3: A software suite that provides intuitive controls for system monitoring, fan control, and overclocking.
Part ID: #CAN-00959
Last Updated: 5 hours ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Chipset
Intel H610 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Expansion Slots
PCI
Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket
1 x M.2 slot
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
Maximum Memory
Max. 64GB
Graphics
Graphics
1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any update ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMITM 2.1.
Connector & Ports
HDMI
1 x HDMI 2.1 port
Display Port (s)
1 x DisplayPort 1.4
VGA (s)
1 x VGA port
USB (s)
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet port
Supported Storage
1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design
Bundled Software
ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME H610M-R D4
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
2 x DIMM, Max. 64GB, DDR4
Graphics Output
1x HDMI, 1 x VGA, 1 x DisplayPort
Features
1x M.2 slot, 1x Realtek 1Gb Ethernet
Part ID: #CAN-00959
Last Updated: 5 hours ago
