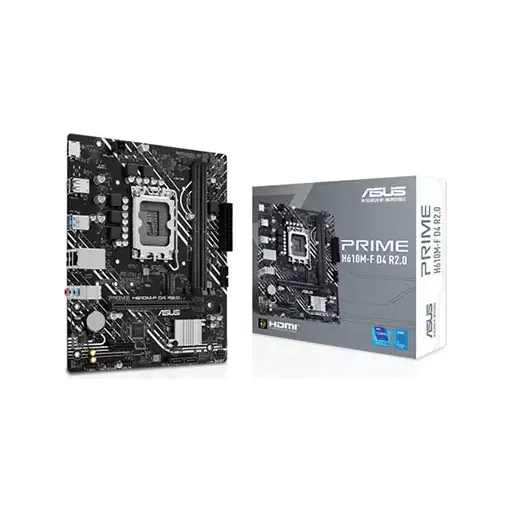

ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard

Status
In Stock
2 stores
Lowest 9,900 BDT
Price Range 9,900 to 10,300 BDT Save 4%
ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard

Product Description

Upgrade Your Build with the ASUS PRIME H610M-F D4 R2.0

The ASUS PRIME H610M-F D4 R2.0 is designed for enthusiasts and builders seeking a powerful, reliable, and feature-rich motherboard for their Intel 14th and 13th Gen systems. This Micro-ATX motherboard delivers exceptional performance, durability, and flexibility, making it an ideal choice for anyone looking to build or upgrade their gaming PC, content creation workstation, or server.

Key Features and Benefits

  • Support for 12th and 13th Gen Intel Core processors, delivering exceptional performance and power efficiency
  • 4 x DDR4 memory slots, supporting up to 64GB of RAM and speeds of up to 4800MHz
  • High-quality audio capacitors and a dedicated audio processor for immersive sound
  • USB 3.2 Gen 2 and USB 3.2 Gen 1 ports for fast data transfer and connectivity
  • High-quality power delivery with 12+2 power phases and 60A power stages
  • ASUS-exclusive Aura Sync RGB lighting for customizable and synchronized lighting effects

ASUS Proprietary Technologies

Prime Features

The ASUS PRIME H610M-F D4 R2.0 motherboard incorporates several ASUS proprietary technologies, including:

ASUS Q-Design - A sleek, modern design that combines functionality with aesthetics.

ASUS Aura Sync - A comprehensive lighting system that enables customizable and synchronized lighting effects.

ASUS Safe Slot - A reinforced PCIe slot design that provides superior retention and protection for graphics cards.

ASUS Q-Code - A user-friendly LED display that provides critical system information and monitoring.

Part ID: #CAN-01486 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard
In Stock 9,900 5 hours ago
Buy Now
Global Brand PLC ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard
In Stock 10,300 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

USB Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Brand ASUS
Color Black
Model PRIME H610M-F D4 R2.0
Memory 2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and several DRAM modules vary depending on the CPU and memory configuration, for more information please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/.
Chipset Intel H610 Chipset
Storage Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 2 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
Graphics 1 x HDMI port
I/O Port Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header
Warranty 3-Years
Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor Documentation 1 x Quick Start guide
Form Factor micro-ATX Form Factor 8.9-inch x 7.4 inch (22.6 cm x 18.8 cm)
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold, and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type.
Other Features Manageability: WOL by PME, PXE
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Operating System Windows 11, Windows 10 64-bit
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Part ID: #CAN-01486 Last Updated: 1 month ago
