Product Description

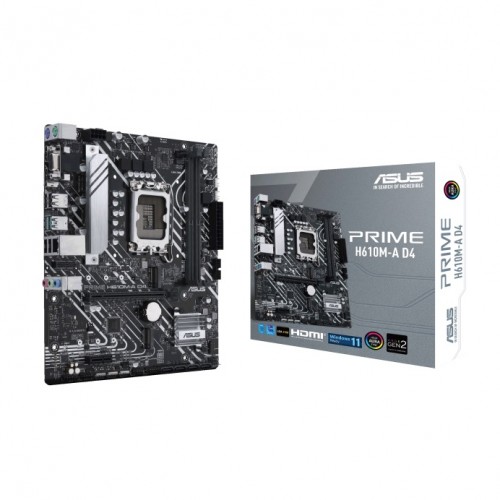

Unleash Your Gaming Potential with ASUS PRIME H610M-A D4
This motherboard is designed for gamers and PC enthusiasts who demand top-notch performance and high-quality features. The ASUS PRIME H610M-A D4 offers a robust platform for building a high-core-count battle rig, with advanced cooling and power delivery solutions that drive the 12th Gen Intel Core processors to their limits.
Key Features and Benefits
Technical Highlights:
- Supports 14th, 13th, and 12th Gen Intel processors (LGA1700)
- Packed with 12 power stages, a six-layer PCB, and ProCool socket for maximum durability
- Comprehensive cooling system with enlarged VRM heatsink, flexible M.2 heatsink, and hybrid fan headers
- PCIe 4.0 slots, PCIe 4.0 M.2 slots, and front USB 3.2 Gen 2 Type-C connectivity for smooth online gameplay
- Realtek 2.5Gb Ethernet and TUF LANGuard for ultrafast networking and robust protection
ASUS Proprietary Technologies
Enhanced Power Solution and Cooling:
The ASUS PRIME H610M-A D4 features a robust power delivery system, including 10 power stages and a six-layer PCB, which provides maximum durability and stability. The comprehensive cooling system features an enlarged VRM heatsink, a flexible M.2 heatsink, and hybrid fan headers, ensuring optimal temperatures and performance.
Performance and Compatibility
Key Specifications:
- 2 x DIMM, DDR4, up to 64GB, 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
- 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot
- 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI port
- 1 x Intel 1Gb Ethernet, V-M.2 slot for Wi-Fi module (sold separately)
Part ID: #CAN-01212
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel H610 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory
64GB
Graphics
Graphics
1 x DisplayPort** 1 x D-Sub port 1 x HDMI port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
D-Sub (s)
1 x D-Sub port
USB (s)
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s)
1 x Intel 1Gb Ethernet
Wireless Communication module
V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME H610M-A D4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Part ID: #CAN-01212
Last Updated: 1 month ago
