Status
In Stock
3 listings tracked
Lowest Deal
16,800
Best Deal
Price Range
Single price listing
Product Description

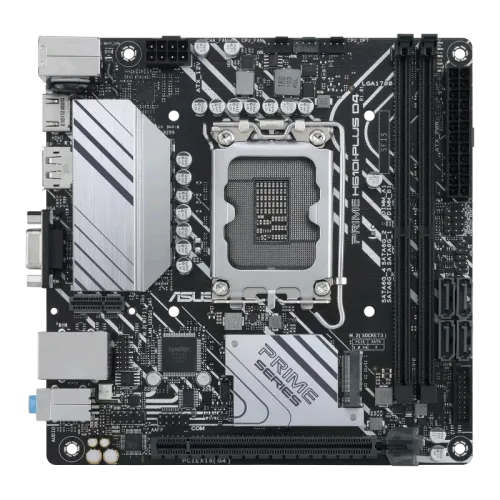

Engineered by ASUS, this motherboard is designed for **LGA1700** socket processors, featuring a **Mini-ITX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **16,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01016
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
|
In Stock | 16,700 | 2 hours ago | |
|
Star Tech
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
|
In Stock | 16,800 | 2 hours ago | |
|
Skyland BD
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
|
In Stock | 16,800 | 1 hour ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel H610 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot
M.2 Socket
1 x M.2 slots
Memory
Type
DDR4
Slots
2x DIMM
Supported Memory
3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory
Max. 64GB
Graphics
Graphics
Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz.
Connector & Ports
HDMI
1 x HDMI port
D-Sub (s)
1 x D-Sub
USB (s)
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet port
Wireless Communication module
M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Audio
3x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
PRIME H610I-PLUS D4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
2x DDR4, Max 64GB 3200
Graphics Output
1x HDMI port, 1x DisplayPort, 1 x D-Sub
Features
1 x Realtek 1Gb Ethernet
Part ID: #CAN-01016
Last Updated: 2 days ago
The ASUS PRIME H610I-PLUS D4 Mini ITX motherboard is engineered to deliver high performance and robust connectivity for compact PC builds. It is based on the Intel H610 chipset and supports the Intel LGA 1700 socket, making it compatible with 14th, 13th, and 12th Gen Intel Core processors. This motherboard boasts an enhanced power delivery system with 5+1+1 DrMOS power stages, ensuring stable and reliable performance. Cooling is efficiently managed through the inclusion of VRM and PCH heatsinks, as well as Fan Xpert technology. In terms of connectivity, it offers a 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and multiple USB 3.2 Gen 1 ports, ensuring fast data transfer and reliable internet connectivity. The motherboard supports a variety of display outputs, including DisplayPort, HDMI, and D-Sub, providing versatile options for different setups. Additional features include COM and mono-out headers with an Amp IC for expanded peripheral connectivity and SATA 6 Gbps ports for quick data access. The ASUS PRIME H610I-PLUS D4 incorporates 5X Protection III, offering multiple hardware safeguards. This combination of performance, cooling, connectivity, and protection makes it an excellent choice for building a powerful yet compact system.Buy ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard from Star TechIn Bangladesh, you can get original ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS PRIME H610I-PLUS D4 Motherboard comes with 3 years warranty.
