Product Description

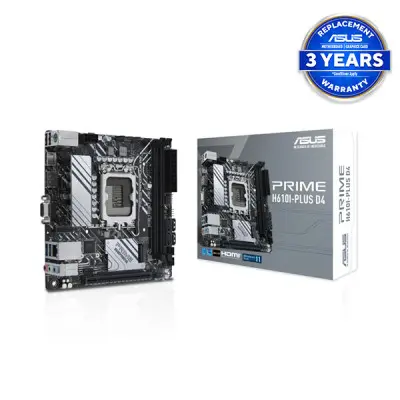

ASUS PRIME H610I-PLUS D4 LGA 1700 Mini-ITX Motherboard
This motherboard is perfect for enthusiasts and content creators seeking a compact yet powerful solution for their desktop systems. Designed to deliver exceptional performance and features, the ASUS PRIME H610I-PLUS D4 LGA 1700 Mini-ITX Motherboard is an ideal choice for building high-performance systems for gaming, content creation, and everyday computing tasks.
Key Features and Benefits
- Intel H610 Chipset: Provides stable and reliable performance for demanding applications.
- Up to 64GB DDR4 Memory: Supports speeds up to 3200MHz for seamless multitasking and efficient performance.
- PCIe 4.0 x16 Slot: Enables high-speed connectivity with compatible peripherals and dedicated graphics cards.
- Realtek 7.1 Surround Sound: Delivers immersive audio experiences with support for jack-detection, multi-streaming, and up to 24-Bit/192 kHz playback.
- ASUS 5X PROTECTION III: Ensures reliable performance and durability with features like DIGI+ VRM, LANGuard, and Overvoltage Protection.
ASUS Exclusive Technologies
ASUS 5X PROTECTION III is a comprehensive suite of technologies designed to ensure reliable performance and durability. This includes DIGI+ VRM, LANGuard, and Overvoltage Protection, which work together to provide a stable and efficient platform for demanding applications. Additionally, the motherboard features ASUS Q-Design and ASUS Thermal Solution, which optimize performance and cooling for a seamless user experience.
Part ID: #CAN-01816
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
CPU
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
USB
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports an additional 2 USB 2.0 ports
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Model
PRIME H610I-PLUS D4
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Chipset
Intel H610 Chipset
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
Graphics
1 x DisplayPort** 1 x D-Sub 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates. *** Support HDMI 2.1 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates.
Warranty
3 Years Replacement Warranty *(Terms and Conditions Applied)
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Screw Package 1 x Vertical M.2 Key E bracket set Installation Media 1 x Support DVD Documentation 1 x User guide
Form Factor
Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Key Feature 1
Chipset: Intel H610 Chipset for 13th Gen
Key Feature 2
Socket: Intel Socket LGA1700
Key Feature 3
M.2 slots: 1 x M.2 slot
Key Feature 4
Memory: 2 x DIMM, Max. 64GB, DDR4
Key Feature 5
USB: 4x Front ports, 4x Rear ports
Manageability
WOL by PME, PXE
Expansion Slots
Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot
Operating System
Windows 11 64-bit, Windows 10 64-bit
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Software Features
ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
Internal I/O Connectors
Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports an additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Part ID: #CAN-01816
Last Updated: 1 month ago
