Product Description

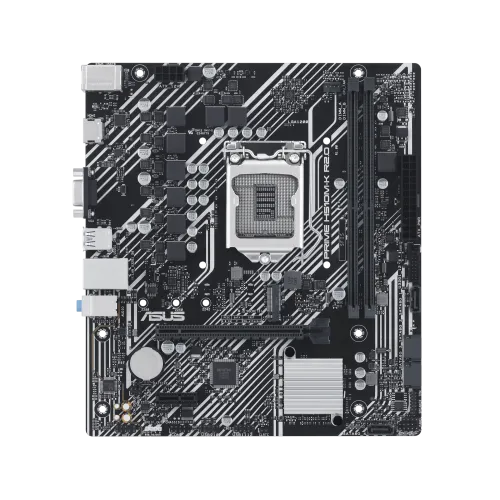

Engineered by ASUS, this motherboard is designed for **LGA1200** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01231
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK)
|
In Stock | Call for Price | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel H470 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Expansion Slots
PCI
Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory
Max. 64GB
Graphics
Graphics
Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports
HDMI
1x HDMI 1.4
VGA (s)
1x VGA port
USB (s)
Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet port
Supported Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME H510M-K R2.0
Supported CPU
11th and 10th Gen Intel Processors (LGA1200)
Supported RAM
2x DDR4, Max 64GB 3200(O.C.)
Graphics Output
1x HDMI port, 1x VGA port
Features
1 x Realtek 1Gb Ethernet
Part ID: #CAN-01231
Last Updated: 2 days ago
The ASUS PRIME H510M-K R2.0 is a versatile micro-ATX motherboard designed for compatibility with both 10th and 11th Gen Intel processors through its LGA 1200 socket. Featuring an Intel H510 chipset, this motherboard supports ultrafast connectivity with PCIe 4.0, a 32Gbps M.2 slot for rapid storage, 1 Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A ports for quick data transfer. For cooling, it includes a PCH heatsink and FAN Xpert technology to ensure optimal thermal management. Additionally, the motherboard offers 5X Protection III, a suite of hardware safeguards that provides overvoltage, short-circuit, and other protective features for enhanced durability and stability. This combination of features makes the ASUS PRIME H510M-K R2.0 a reliable and efficient choice for building a high-performance computing system.Buy ASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK) from Star TechIn Bangladesh, you can get original ASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK) From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS PRIME H510M-K R2.0-SI Micro-ATX Motherboard (BULK) comes with 3 years warranty.
