Product Description

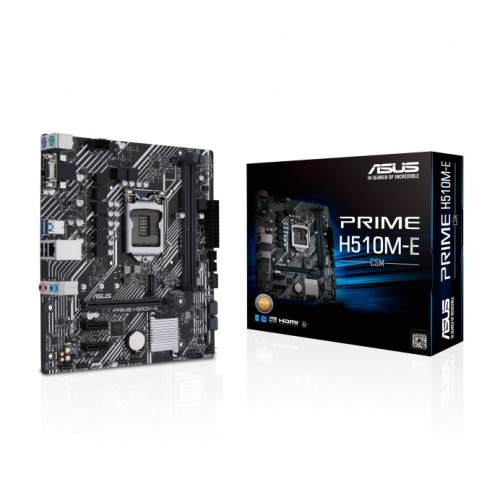

Unlock Unparalleled Performance with ASUS Prime H510M-E/CSM
The ASUS Prime H510M-E/CSM motherboard is designed for the most discerning PC enthusiasts and builders who demand the best from their high-performance systems. This expertly engineered micro ATX motherboard unleashes the full potential of 10th and 11th Generation Intel processors, delivering unparalleled performance, flexibility, and reliability.
Key Features and Benefits
Technical Highlights:
- Supports Intel LGA 1200 Socket: Compatible with 11th and 10th Gen Intel Processors for seamless upgrades and future-proofing.
- PCIe 4.0/3.0 x16 Slot: Empowers you to harness the full power of your Intel 11th Gen processor, with support for PCIe 4.0 x16.
- DDR4 Memory Support: Dual Channel Memory Architecture for enhanced performance and capacity.
- Comprehensive Cooling Controls: Intuitive Fan Xpert software and UEFI BIOS for precise temperature control and stability.
- USB and Storage Options: 6 USB ports, including 2 x USB 3.2 Gen 1 and 4 x SATA 6Gb/s ports.
ASUS Exclusive Technologies
Unleash Your System's Potential:
ASUS Prime H510M-E/CSM is equipped with a range of proprietary technologies that take your system to the next level. These include:
- ASUS 5X PROTECTION III: Advanced protection for your system, including DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O.
- ASUS Q-Design: A user-centric design that makes it easy to customize and upgrade your system.
- ASUS Armoury Crate: A centralized software utility for managing and optimizing your supported ASUS products.
Part ID: #CAN-01226
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus Prime H510M-E/CSM Intel 11th and 10th Gen Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
ASUS PRIME H510M-E/CSM LGA1200 mATX Motherboard
|
In Stock | 10,000 | 4 hours ago | |
|
Sell Tech
Asus Prime H510M-E/CSM Intel 11th and 10th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
H510
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
microATX 22.6cm x 21.1cm
Expansion Slots
PCI
Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 2 x PCIe 3.0 x1 slots
Memory
Type
DDR4
Supported Memory
DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Graphics
Graphics
1 x D-Sub * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel 11th & 10th Gen Processors
Connector & Ports
HDMI
1 x HDMI 2.0
Display Port (s)
1 x DisplayPort 1.4
D-Sub (s)
1 x D-Sub
USB (s)
Rear USB:Total 4 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Intel I219-V 1Gb Ethernet
Supported Storage
Intel H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header
Bundled Software
ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
Prime H510M-E/CSM
Intel LGA 1200 socket
Ready for 11th and 10th Gen Intel Processors
Part ID: #CAN-01226
Last Updated: 1 month ago
